Wholesale High Quality Numerical Control CNC Die Sinker Machine Znc Sinking Machine Znc350

Key attributes

Industry-specific attributes

Other attributes

Packaging and delivery

Product descriptions from the supplier

Video Description

Edm Die Sinking Machine--Parameter

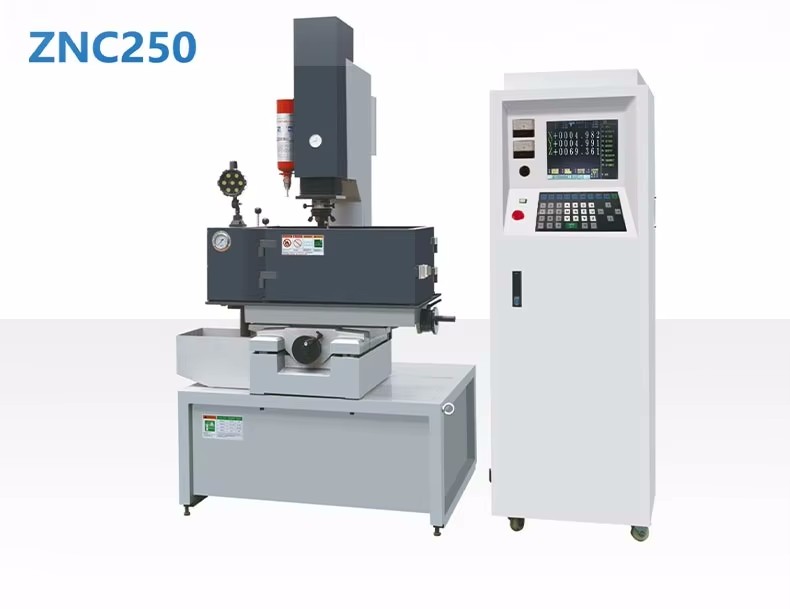

Model	unit	ZNC250	ZNC350	ZNC430	ZNC450	ZNC540	ZNC650	ZNC860
Dimension of working tank	mm	720x490x320	850x570x350	1000x580x370	1065x640x450	1160x690x500	1320x800x500	1730x1020x600
Working table dimension	mm	500x250	600x320	700x360	700x400	800x450	900x500	1200x700
Table travel (X, Y travel)	mm	250x160	350x250	400x300	450x350	500x400	600x500	800x600
Z axis travel	mm	200	200	200	210	220	220	260
Z Travel of machine head	mm	/	200	200	235	260	260	280
Max and Min height of spindle end to working table	mm	430/250	550/150	610/250	660/220	690/220	800/340	950/410
Dimension of oil tank	mm	1130x970x530	1000x1300x455	500x1400x550	750x1150x530	1100x1400x530	1100x1900x510	1400x2100x510
Max weight of electrode	kg	50	50	75	50	50	50	50
Max load of working table	kg	400	500	800	800	1000	1000	2000
Weight of machine body	kg	710	1030	1200	1500	1700	2100	3600
Dimension of machine (with oil tank)	mm	1250x1000	1650x1400	1700x1400	2100x1300	2400x1450	2500x1900	2750x2100

Taizhou Chuang Yuan Machine Tool Co., Ltd. is located in Hi-tech Science and Technology Industry Zone of Taizhou City, Jiangsu Province, China, with a number of research and development and manufacturing bases. Our company specializes in researching,manufacturing and selling precision machines.Taizhou Chuang Yuan Machine Tool Co., Ltd. has built long term and close cooperation relationships with many foreign friends, covering more than 20 countries, and we are looking forward to more cooperations with friends from all over the world, and hope our products could help more friends in their local industry and business market development. Our company established in 2003, has 96 employs, and sold about 200 sets about the machines all of the world. We always keep our enterprise mission---“Quality changes the world” in mind. We start our work from each trivial matter, and do our best to complete each detail well, and offer solid technical service and good service to our machine customers.Quality guarantee, high efficiency, valuing friendship, observing credibility and sincerity-oriented” is our enterprise principle,which all staff should abide by. Quality and honesty are the keys of the enterprise future.
