- Type: Horizontal
- Max. length of workpiece (mm): 300
- Voltage: 380V
- Machining Capacity: Heavy Duty
- Max. Weight of Workpiece (kg): 400
- No. of Spindles: Single Phase
- Number of Axes: 2
- Travel (X Axis) (mm): 185
- Travel (Z Axis) (mm): 350
- Positioning Accuracy (mm): ±0.003
- Repeatability (X/Y/Z) (mm): ±0.003
Key attributes
| Key selling points | Long Service Life | Max. length of workpiece (mm) | 300 |

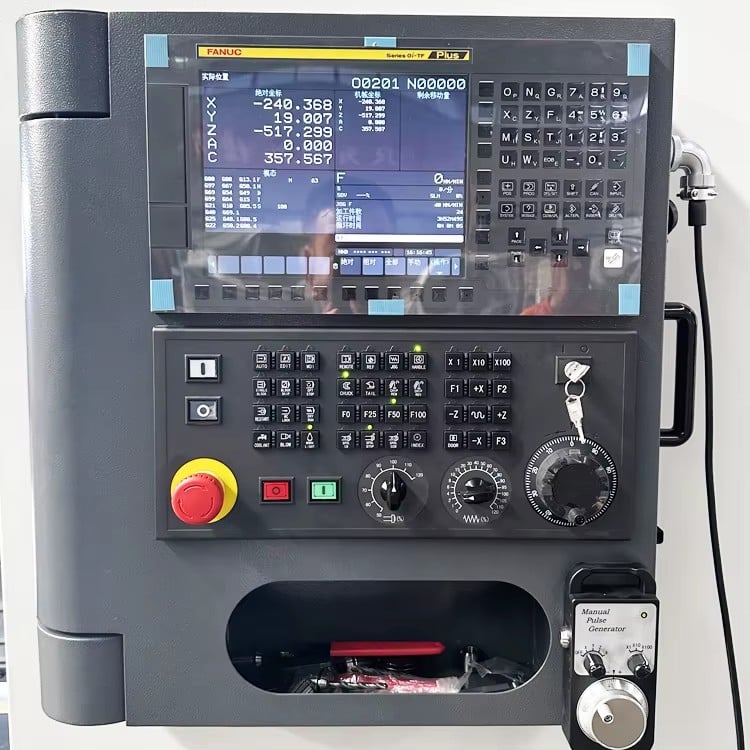

| Voltage | 380V | Cnc control system | FANUC |
| Positioning accuracy (mm) | ±0.003 | Number of axes | 2 |
| Type | Horizontal | Warranty | 1 Year |
| No. of spindles | Single Phase | Repeatability (x/y/z) (mm) | ±0.003 |
| Machining capacity | Heavy Duty | Max. weight of workpiece(kg) | 400 |
| Travel (x axis)(mm) | 185 | Travel (z axis)(mm) | 350 |
| Tool post stations | 8 | Weight (kg) | 2500 |
| Range of spindle speed(r.p.m) | 50 - 3500 r.p.m | Cutting torque | 1.12 |
| Width of bed (mm) | 400mm | Place of origin | Jiangsu, China |
| Dimension(l*w*h) | 2200*1636*1850 | Brand name | ChuangYuan |

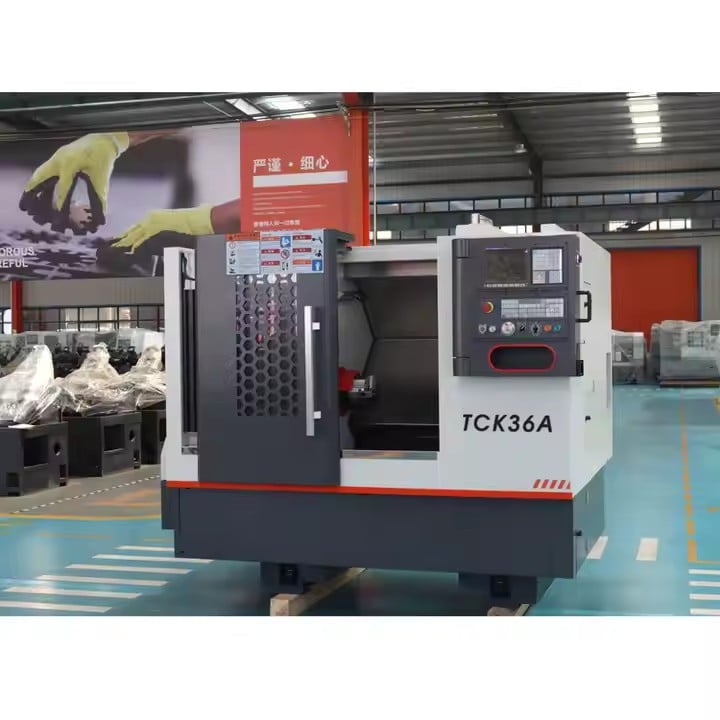

| Model number | TCK36A | Machinery test report | Provided |
| Video outgoing-inspection | Provided | CNC or Not | CNC |
| Automatic Grade | Automatic | After-sales Service Provided | Engineers available to service machinery overseas |
| Keyword | CNC Lathe Machine | Max. swing over bed | 360mm |
| Max. swing over carriage | 140mm | Max. workpiece length | 300mm |
| Weight | 2600KG | Power(W) | 5.5KW |
| Max. Swing Diameter | 56mm |
Packaging and delivery
| Selling Units | Single item |
| Single package size | 220X170X190 cm |
| Single gross weight | 2500.000 KG |

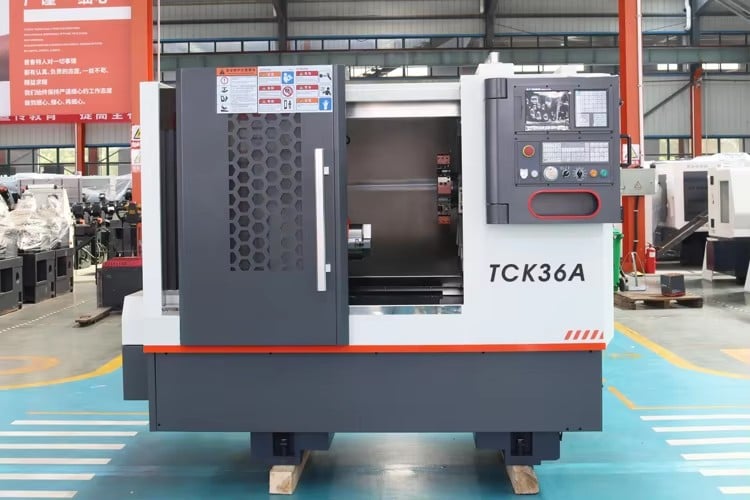

Product Description

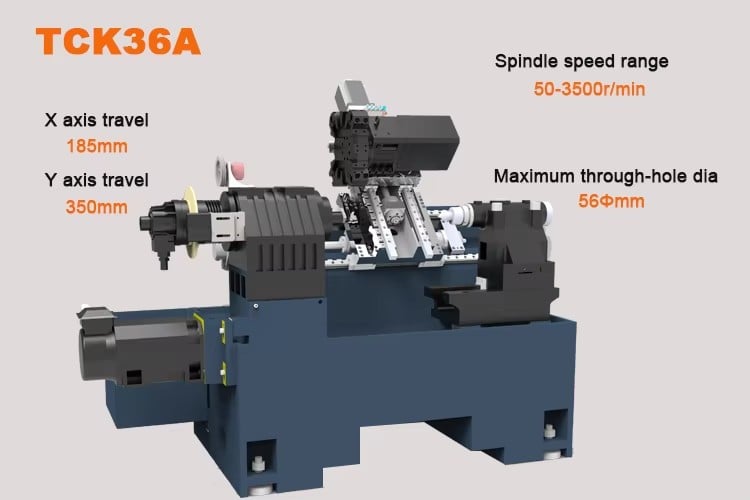

Specifications |
Unit |
TCK36A |
Max. swing dia. over bed |
mm |
360 |
Max. swing dia. over slide |
mm |
140 |
Max. processing length |
mm |
300 |
Max. bar capacity |
mm |
44 |
Max. processing diameter of plate type work piece |
mm |
330 |
Spindle nose |
A2-5 |
|
Diameter of spindle through hole |
Φ/mm |
56 |
Spindle speed range |
r/min |
50-3500 |
Spindle shift mode |
Stepless speed regulation |
|
Motor power of spindle |
kw |
5.5 |
X axis travel |
mm |
185 |
Z axis travel |
mm |
350 |
Guide way type |
linear guide rail | |

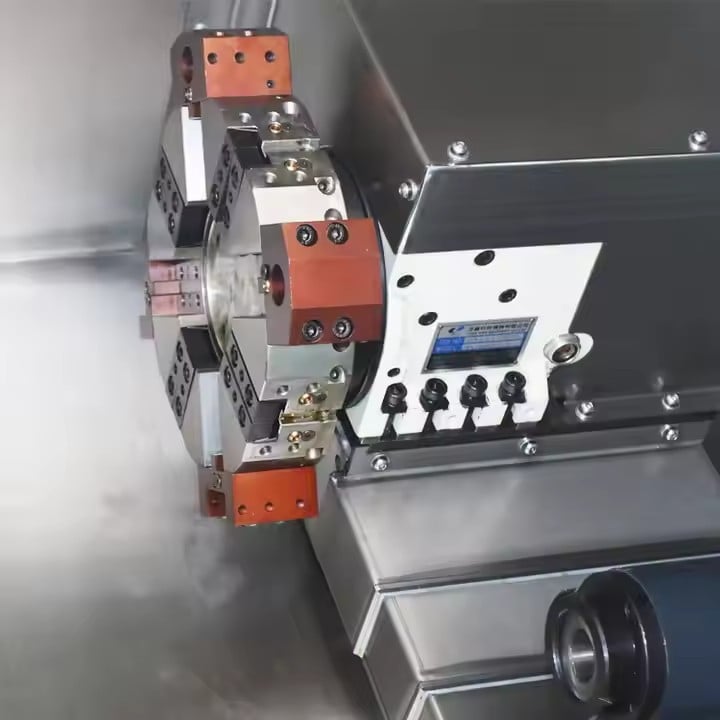

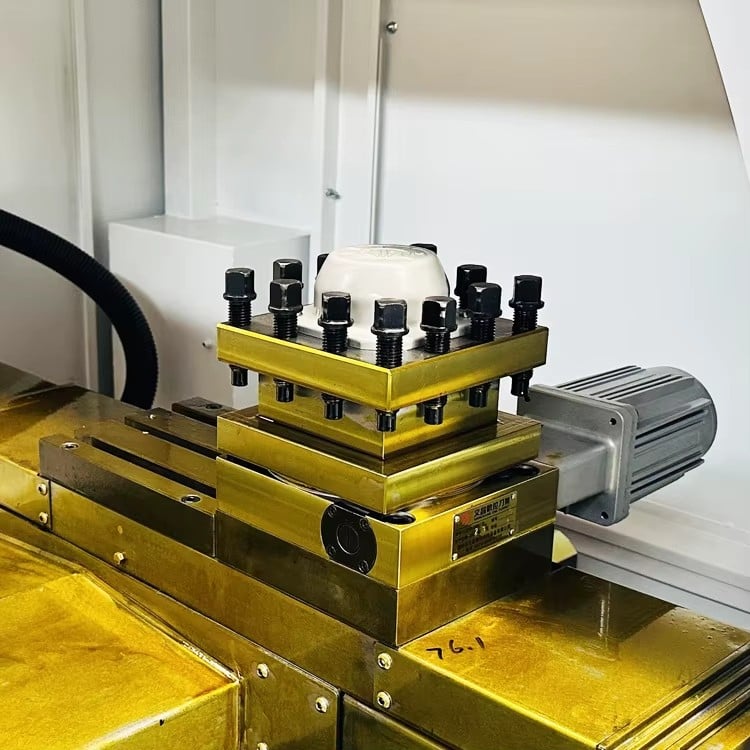

| Tool post type | 8Station | |
Tool shank size (square cutting tool/boring cutting tool) |
mm |
20x20/Ø25 |

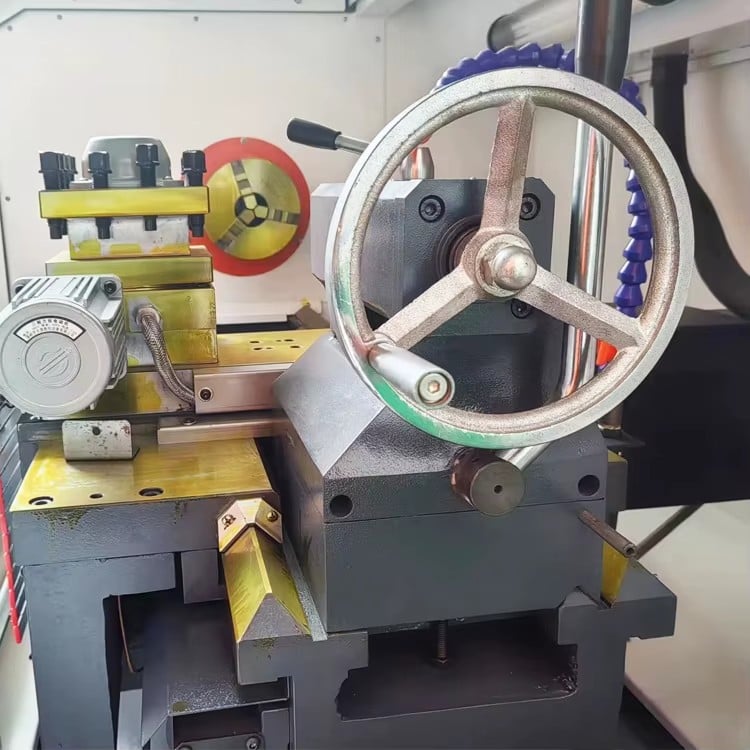

Tail stock type |
hydraulic pressure | |
Tail stock quill dia |
mm |
65 |
Tail stock quill trave |
mm |
60 |
| Tail stock quill taper | MT4# | |
| Total rated power | KW | 11 |
| Total rated current | A | 19 |
| Net weight | kg | 2500 |
| Machine dimension(L×W×H) | mm | 2200×1636×1850 |
 |
 |
| GSK system | GSK main motor |
 |
 |

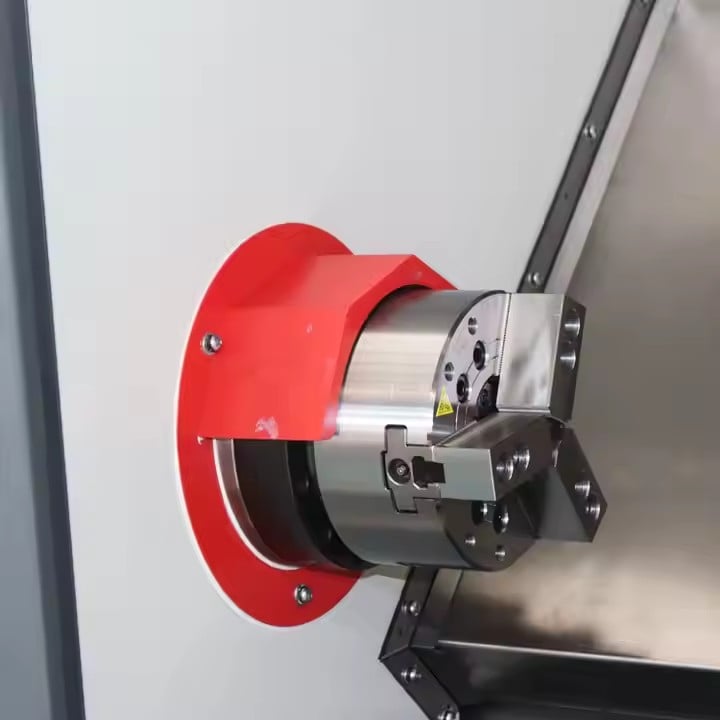

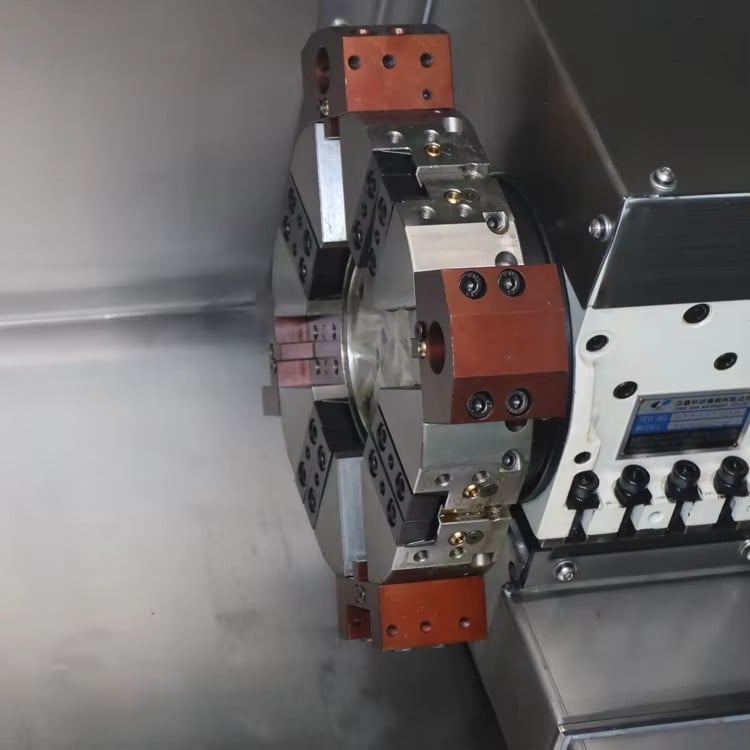

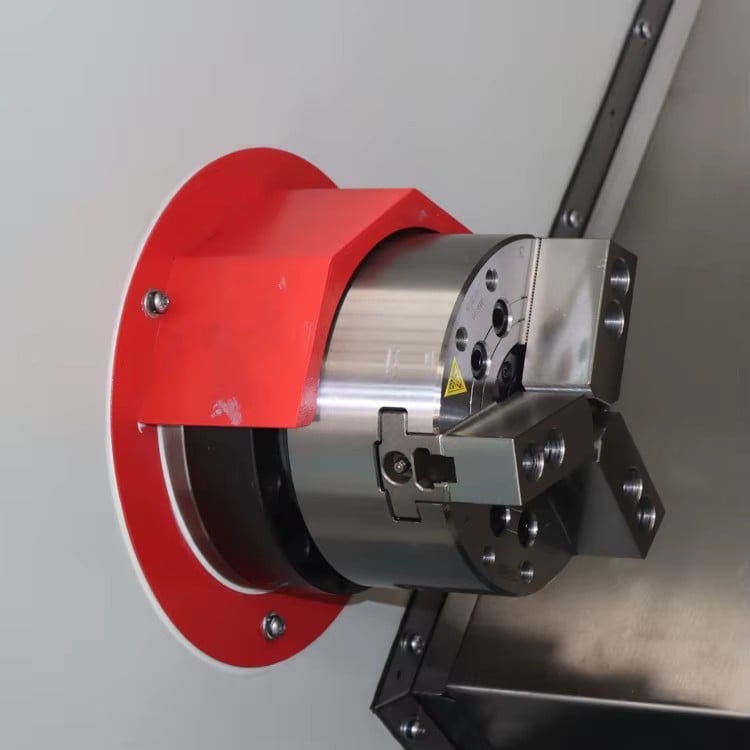

| 8-station servo turret | Hydraulic chuck |
 |
 |
| Tail Stock | Electric Tool Post/Turret |
Company Profile

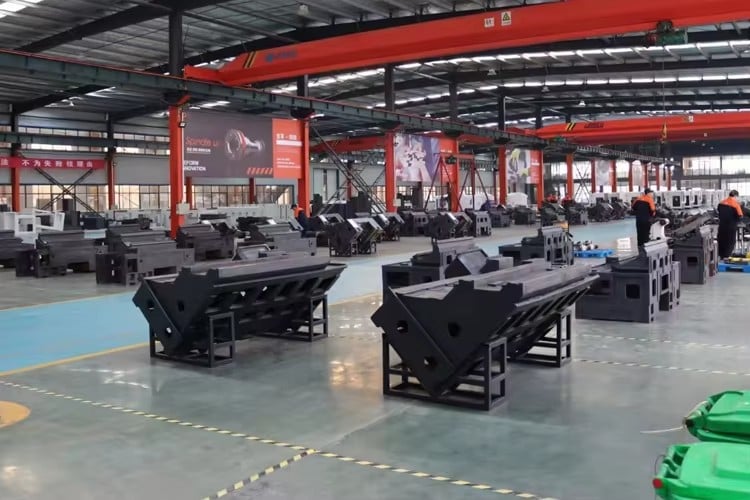

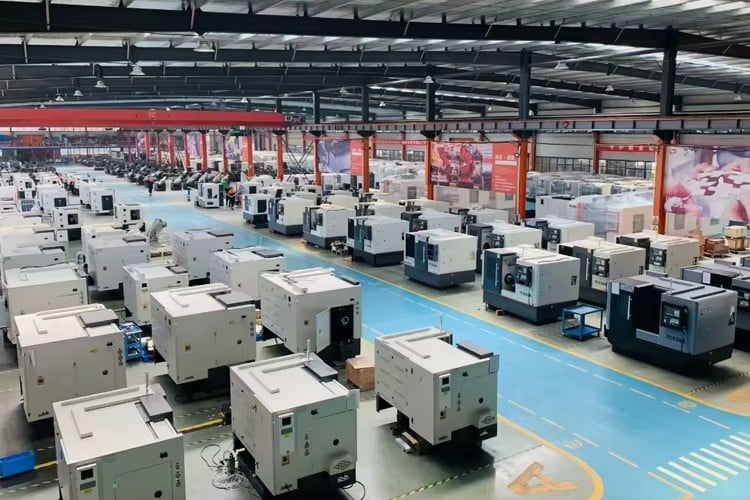

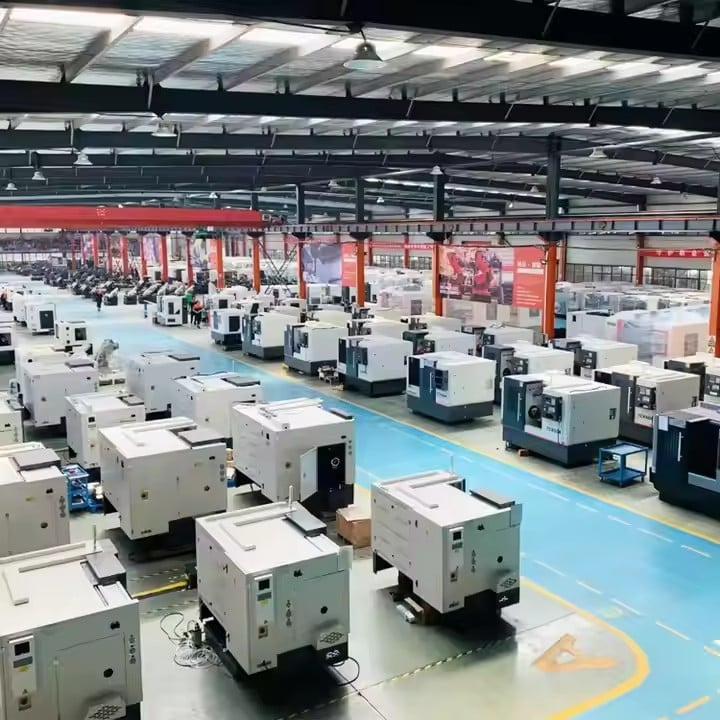

Taizhou Chuang Yuan Machine Tool Co., Ltd. is located in Hailing Industry Park Taizhou City, Jiangsu Province, China,with a number of research and development and manufacturing bases. Our company specializes in researching,manufacturing and selling precision machines.Taizhou Chuang Yuan Machine Tool Co., Ltd. has built long term and close cooperation relationships with many foreign friends, covering more than 20 countries, and we are looking forward to more cooperations with friends from all over the world, and hope our products could help more friends in their local industry and business market development. Our company established in 2003, has 96 employs, and sold about 200 sets about the machines all of the world. We always keep our enterprise mission---“Quality changes the world” in mind. We start our work from each trivial matter, and do our best to complete each detail well, and offer solid technical service and good service to our machine customers.Quality guarantee, high efficiency, valuing friendship, observing credibility and sincerity-oriented” is our enterprise principle,which all staff should abide by. Quality and honesty are the keys of the enterprise future.
FAQ
Q:Are you manufacturer?
A: Yes, we are manufacturers ,we have our own technical team, and multiple production bases, welcome to visit us!
Q:What payment terms do you accept?
A: We are flexible on payment terms,we can also help you on financing,please contact us for details!
Q:What should I do to start a new business?
A: Please contact us immediately,we provide free pre-sales consultant service. Also we can help you to solve the worker training.
Q: I`m worried about after-sales service!
A: Firstly,each machine leaving the factory will be along with related English instructions including maintenance manual and operation manual.We also have detailed instructional videos, even if novices can operate by watching the videos.We provide training for free, customer can come to our factory for training, or our engineer can come to customer's factory teaching.
Secondly,warranty is one year. Any parts non-human damaged during warranty will be replaced for free! We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives,we`ll provide them for life time as well at cost price.
Thirdly,Our customer service is available 24 hours a day, and you can consult us anytime if you have any questions.
Q:Why choose you?What is the difference between you and other Chinese supplier?
A: We are manufacturer and have been specialized in this area for over 20 years.Our machines are exported to all over the
world.
You can get perfect quality product & professional service from CHUANG YUAN with good price.
