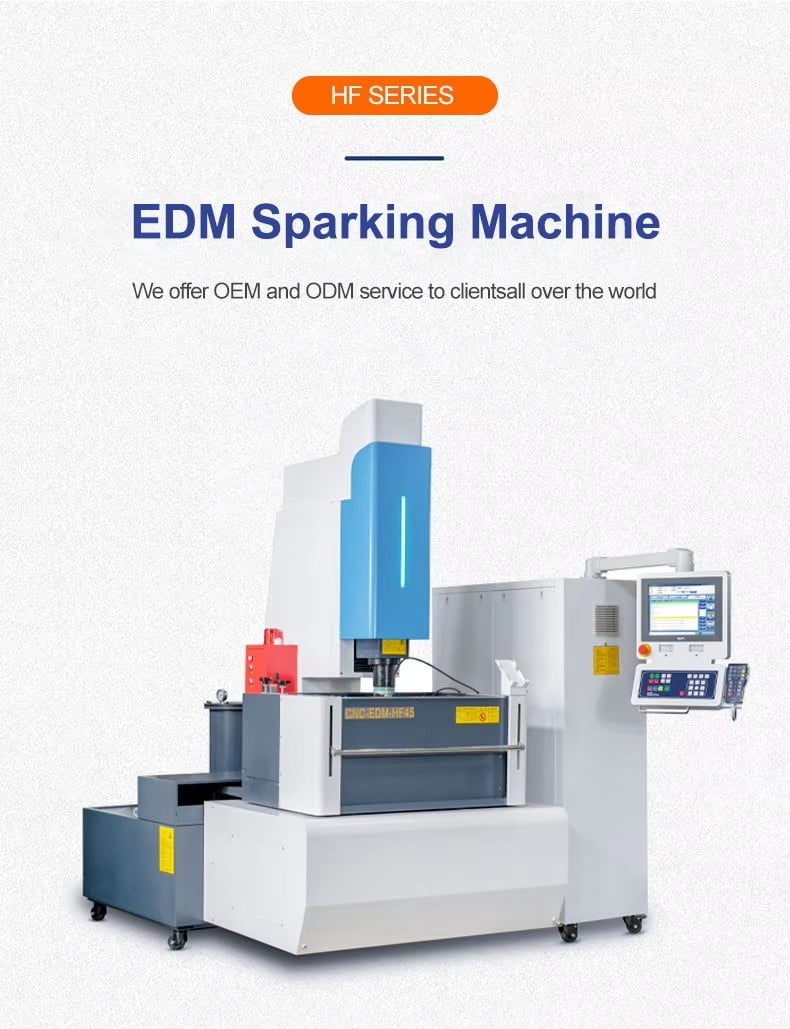

- Machine type: Sinker EDM
- Cnc or not: CNC
- Core components: PLC
- Weight (kg): 4000
- Warranty: 1 Year
- Video outgoing-inspection: Provided
- Machinery test report: Provided
- Place of origin: Jiangsu, China
- Brand name: Chuangyuan
- Dimension(l*w*h): 2400x2400x2660
- Key selling points: Competitive Price
- Work table size: 900x500mm
- X/Y/Z axis travel: 700x400x300mm
- Maximum electrode load-bearing capacity: 80kg
- Maximum workpiece weight: 3000kg
Key attributes
Industry-specific attributes
| machine type | Sinker EDM |
Other attributes
| cnc or not | CNC |
| core components | PLC |
| weight (kg) | 4000 |
| warranty | 1 Year |
| video outgoing-inspection | Provided |
| machinery test report | Provided |
| place of origin | Jiangsu, China |
| brand name | Chuangyuan |
| dimension(l*w*h) | 2400x2400x2660 |
| key selling points | Competitive Price |
| Work table size | 900x500mm |
| X/Y/Z axis travel | 700x400x300mm |
| Maximum electrode load-bearing capacity | 80kg |
| Maximum workpiece weight | 3000kg |
| Capacity of machining fluid | 750L |
| Lubrication type | Manual |
| Maximum liquid level height | 300mm |
| Liquid tank opening and closing method | Up/Down Manual |
| Filtering accuracy | 5μm |
Packaging and delivery
| Selling Units: | Single item |
| Single package size: | 240X240X266 cm |
| Single gross weight: | 4000.000 kg |
|
Edm Die Sinking Machine--Parameter
|
|||
|
Model
|
unit
|
HGS45
|
HGS65
|
|
X/Y/Z axis travel
|
mm
|
450*300*300
|
650*450*350
|
|
Workbench size
|
mm
|
600*450
|
800*550
|
|
Distance between electrode plate and workbench
|
mm
|
250~550
|
250~600
|
|
Maximum electrode load-bearing capacity
|
kg
|
50
|
80
|
|
Maximum workpiece weight
|
kg
|
800
|
1500
|
|
Workbench to ground height
|
mm
|
900
|
950
|
|
Dimensions inside the processing groove
|
mm
|
800*550*350
|
1050*700*400
|
|
Capacity of machining fluid
|
l
|
400
|
600
|
|
External dimensions
|
mm
|
2020*2135*2520
|
2200*2400*2840
|
|
Net weight
|
kg
|
4500
|
6000
|
|
Lubrication system
|
|
Automatic
|
Automatic
|
|
Maximum liquid level height
|
mm
|
300
|
350
|
|
Liquid tank opening and closing method
|
|
Lift/Automatic
|
Lift/Automatic
|
|
Level control
|
|
Automatic
|
Automatic
|
|
Filtering accuracy
|
μm
|
5
|
5
|
