- Warranty: 1 Year
- Video outgoing - inspection: Provided
- Machine type: Wire EDM
- Cnc or not: CNC
- Machinery test report: Provided
- Key selling points: Competitive Price
- Core components: PLC
- Voltage: 380V, 220V
- Power (kw): 3
- Weight (kg): 1700
Key attributes
Industry-specific attributes
| warranty | 1 Year | video outgoing - inspection | Provided |
| machine type | Wire EDM | cnc or not | CNC |
| machinery test report | Provided | key selling points | Competitive Price |
| core components | PLC | voltage | 380V, 220V |
| power (kw) | 3 | weight (kg) | 1700 |
| place of origin | Jiangsu, China | brand name | Chuangyuan |
| dimension(lwh) | 1750*1370*1900mm | Machine size | 1750*1370*1900mm |
| Worktable size | 720*500mm | travel | 400*320mm |
| Maximum work piece cutting thickness | 280mm | Taper machining | ±3°/80 mm |
| Optimum surface roughness | Ra ≤0.8μm | weight | 1700kg |
| Maximum working weight | 300kg |
Packaging and delivery
| Selling Units | Single item |
| Single package size | 175X137X190 cm |
| Single gross weight | 1700.000 KG |
Product descriptions from the supplier
Product Description

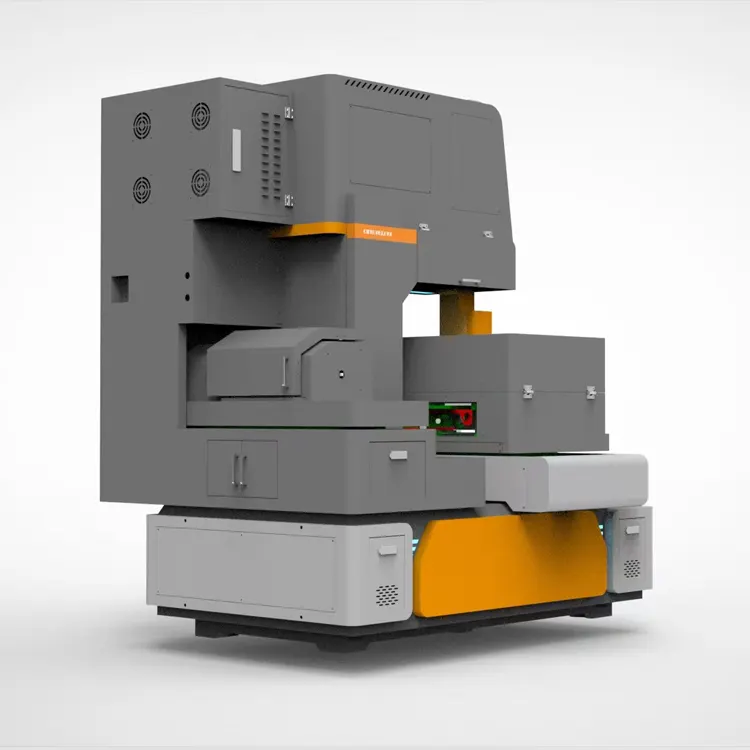

●The machine adopts a box structure, which is stable and reliable.
Machine Accuracy Inspection | |
Item |
Allowance mm |
X. Y-axis bidirectional positioning accuracy A |
X:0.008 Y:0.008 |
X. Y-axis unidirectional repetitive positioning accuracy R↑ and R↓ |
X:0.005 Y:0.005 |
X. Y axis reverse difference B |
X:0.012 Y:0.012 |
Working accuracy inspection | |
Item |
Allowance mm |
Octagonal with a side dimension of 28mm (40mm thick workpiece) |
0.008 |
Multiple cuts |
Ra≤0.8um |

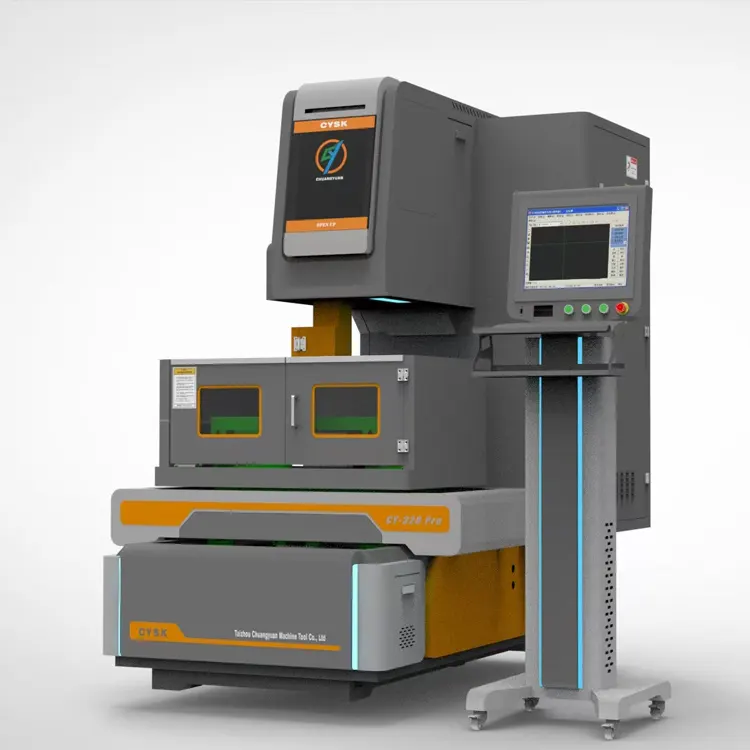

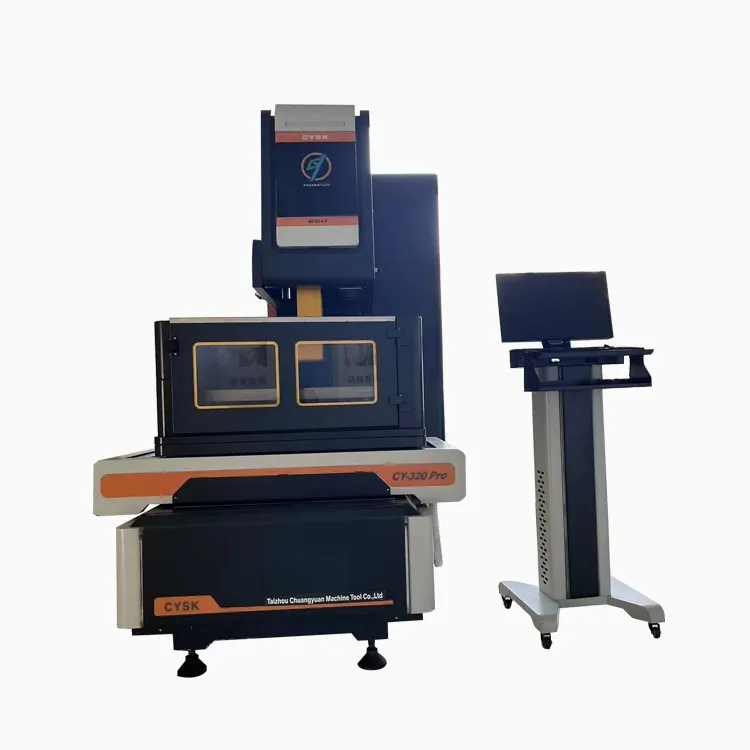

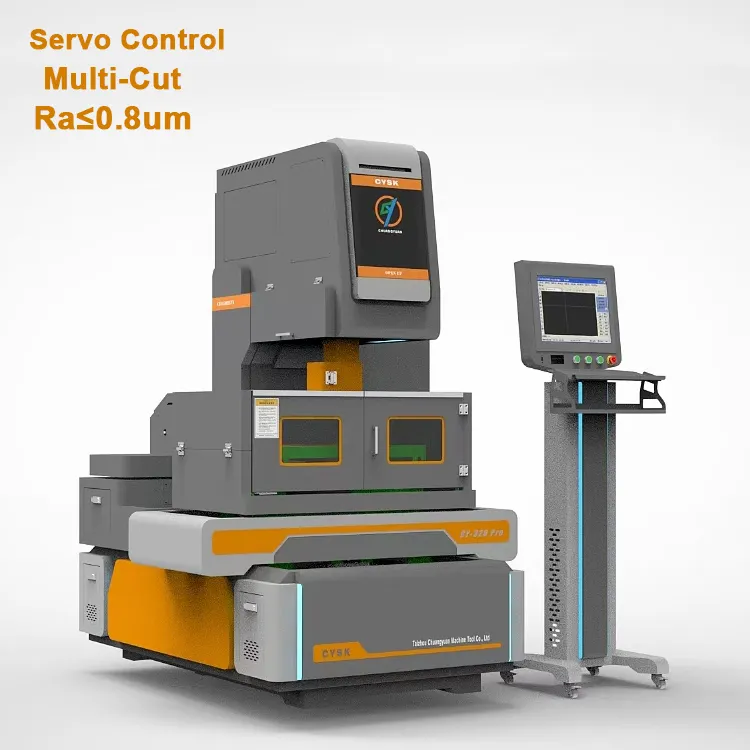

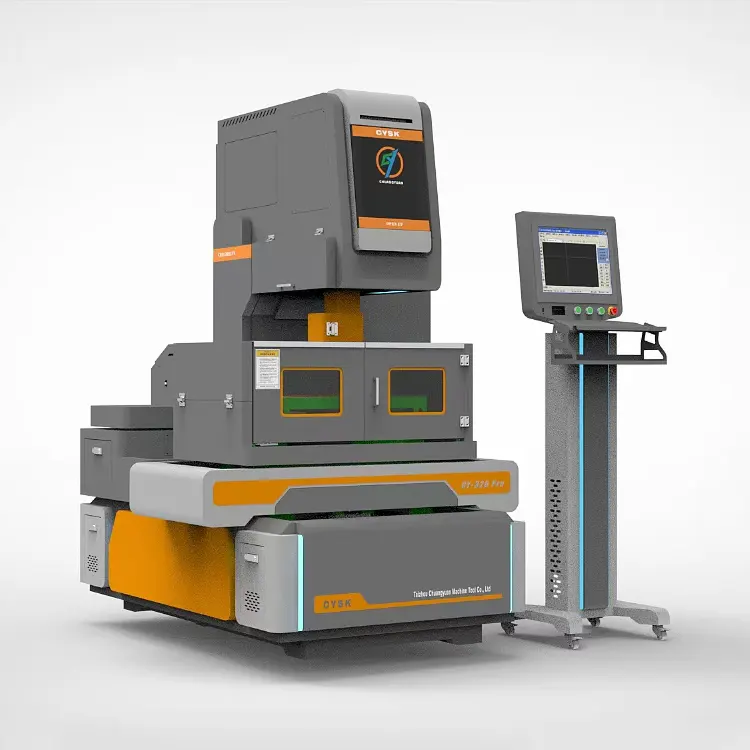

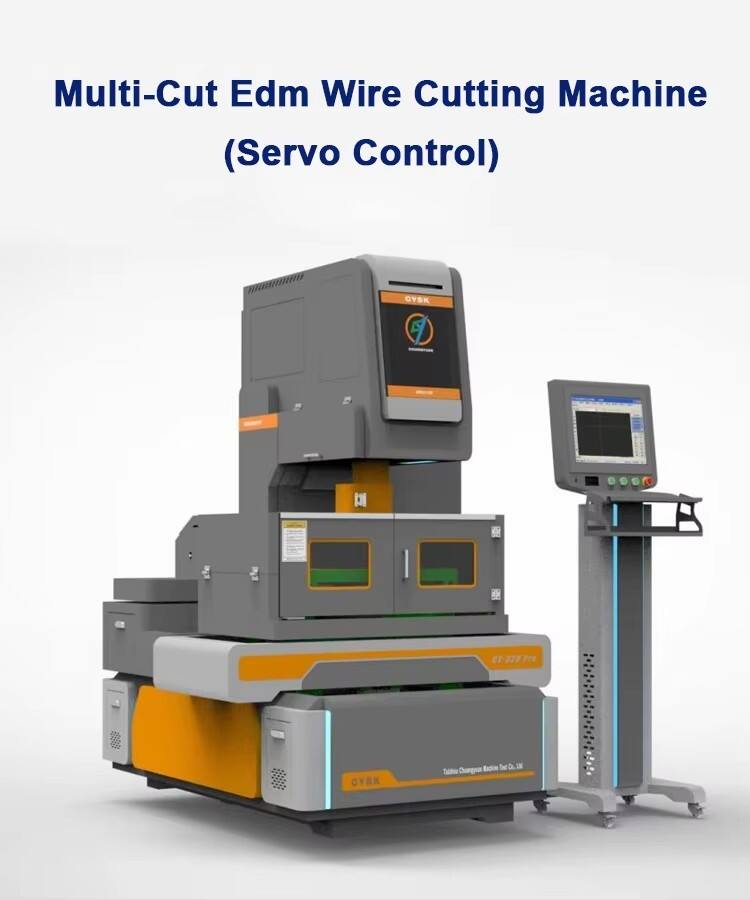

Multi-Cut Edm Wire Cutting Machine | |||
model |
unitl |
CY-320 Pro |
CY-400 Pro |
Machine overall size |
mm |
1500x1800x2100 |
1600x1920x2100 |
Dimension of worktable |
mm |
720x500 |
850x600 |
XY coordinate axis travel |
mm |
400x320 |
400x500 |
Z-axis travel |
mm |
Servo control 300 |
Servo control 300 |
Max cutting taper |
mm |
±12º/60 |
±12º/60 |
Max weight of workpiece |
kg |
300 |
500 |
Total weight of machine |
kg |
1700 |
2000 |

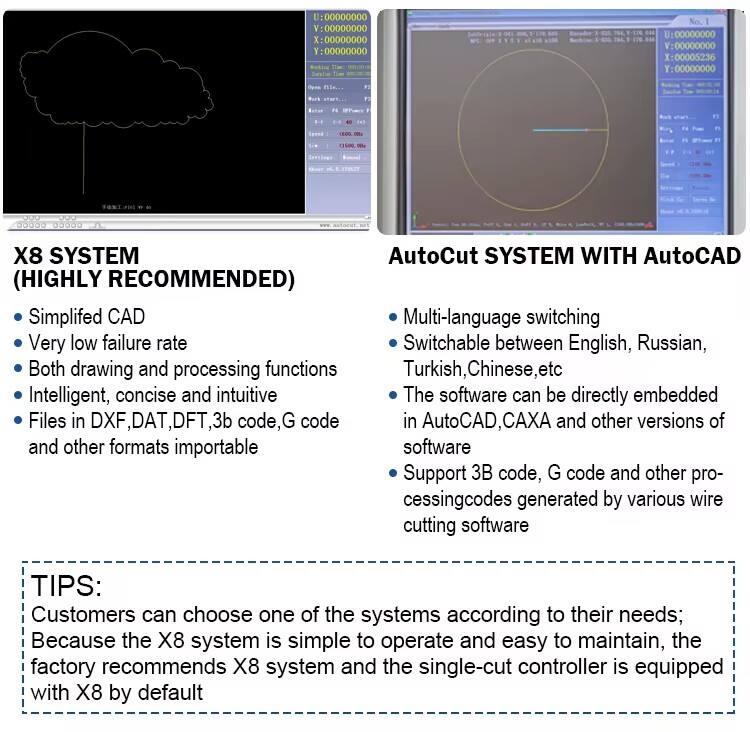

Software System

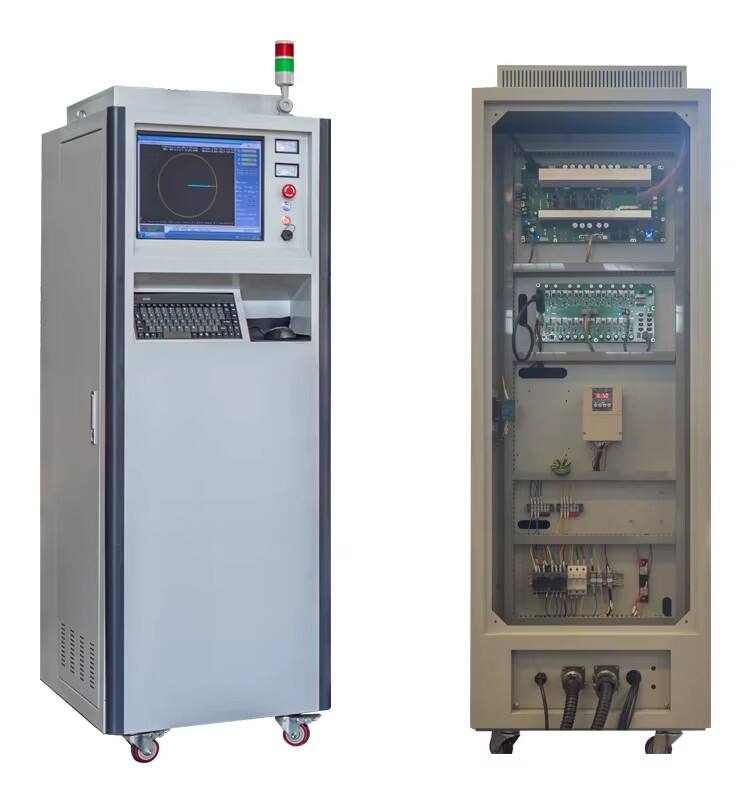

Electric Cabinet
Exhibition

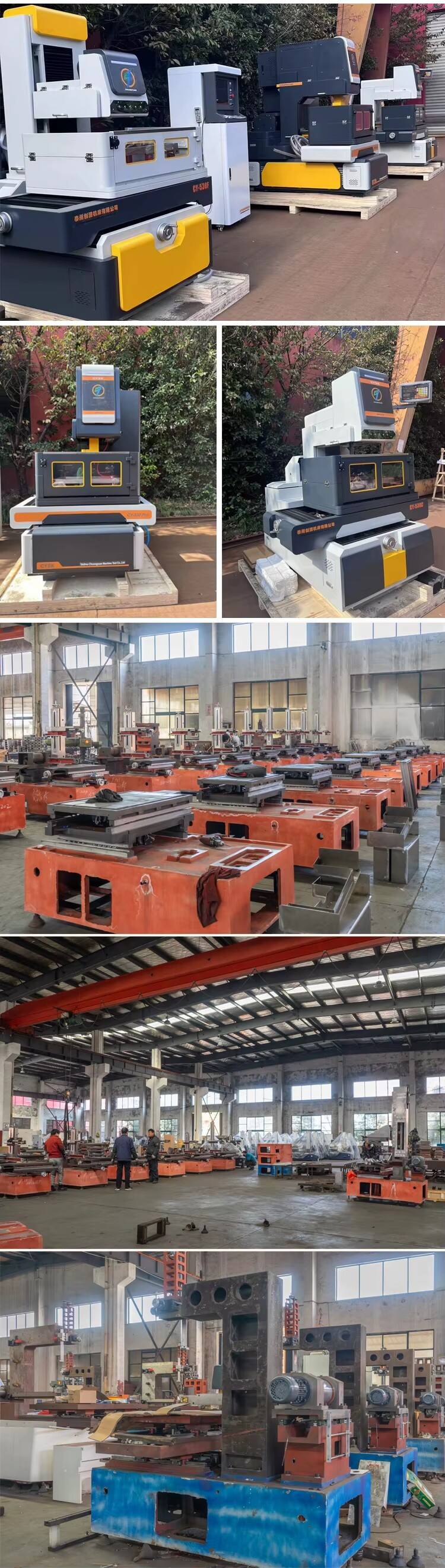

Company Profile
Taizhou Chuang Yuan Machine Tool Co., Ltd. was established in 2003 and is located in Hailing Industrial Park, Taizhou City, Jiangsu Province, China. We are a professional manufacturer that integrates research and development, production, and sales. We have excellent processing equipment, strong technical strength, and exquisite processing technology. Our EDM equipment comes in various models and configurations. In addition, we can customize the model according to your requirements. It has a wide range of applications in multiple fields,such as automobile manufacturing, aerospace, electronics and mechatronics integration, and metal products. And its high precision,unrestricted by material hardness, and other characteristics make it an indispensable machining tool in many industrial fields.
We also have multiple production and research and development bases with rich experience in the mechanical industry, which can provide you with better sales solutions and processing techniques.
We have established long-term and close cooperative relationships with foreign friends from over 20 countries. We look forward to more cooperation with friends from all over the world and hope that our products can help more friends develop in local industries and commercial markets. Quality assurance, efficiency, friendship, reputation, and integrity are the corporate principles that all of our employees should abide by.

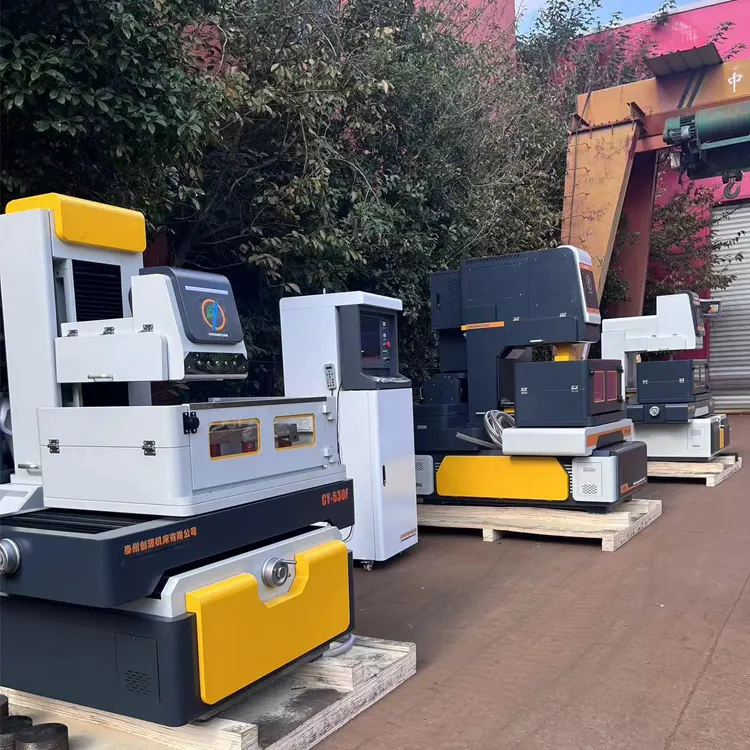

Product packaging
Reinforced wooden box packaging to effectively protect the machine from external damage to ensure that customers receive the machine in good condition.
