- Type: Horizontal CNC Deep Hole Gun Drilling Machine
- Max. drilling dia. (mm): 50
- Range of spindle speed(r.p.m): 30 - 1500 r.p.m
- CNC or not: CNC
- Voltage: 380220/415/440V
- Weight (kg): 3000 KG
- Warranty: 1 Year
- Core components: Pump, Gear, Motor
- Drilling speed: 800-7000r/min
- Place of origin: Jiangsu, China
- Brand name: ChuangYuan
- Dimension(l*w*h): 5000x4050x2050mm
- Key selling points: Long Service Life
- Machinery test report: Provided
- Video outgoing-inspection: Provided
Key attributes
Other attributes
| Video outgoing-inspection | Provided | Warranty | 1 Year |
| Key selling points | Long Service Life | Core components | Pump, Gear, motor |
| Machinery test report | Provided | Cnc or not | CNC |
| Max. drilling dia. (mm) | 50 | Type | Horizontal CNC Deep Hole Gun Drilling Machine |
| Voltage | 380220/415/440V | Range of spindle speed(r.p.m) | 30 - 1500 r.p.m |
| Power (kw) | 45 | Weight (kg) | 3000 |
| Drilling speed | 800-7000r/min | Place of origin | Jiangsu, China |
| Brand name | ChuangYuan | Dimension(l*w*h) | 5000x4050x2050mm |
| Product Name | CNC deep hole gun drill machine | Color | Optional |
| Range of drilling dia. | 3-20mm | Overall dimension(L x W x H) | 6050x4050x2050mm |
| Application | Deep hole drilling | Key words | cnc deep hole gun drill machine |
| CNC or Not | CNC | Max. Drilling depth | 500mm |
| Head stock spindle speed | 380r/min | Power | 19000 |
Packaging and delivery
| Selling Units: | Single item |
| Single package size: | 510X415X215 cm |
| Single gross weight: | 3000.000 kg |
Product descriptions from the supplier
Overview
ZK Series CNC Deep Hole Gun Drilling Machine
CNC deep hole drilling machine is a special-purpose deep hole drilling machine with properties of high efficiency, high accuracy and high automation.
It adopts gun drill method and inner-chip removing method (BTA),through one continues drilling.
It can realize the machining accuracy and surface roughness usually by the progress of drilling, expanding and reaming.
The machine is controlled by CNC system with function of both single action and automatic recycling so that it can meets the requirements of small batch and large batch machining.

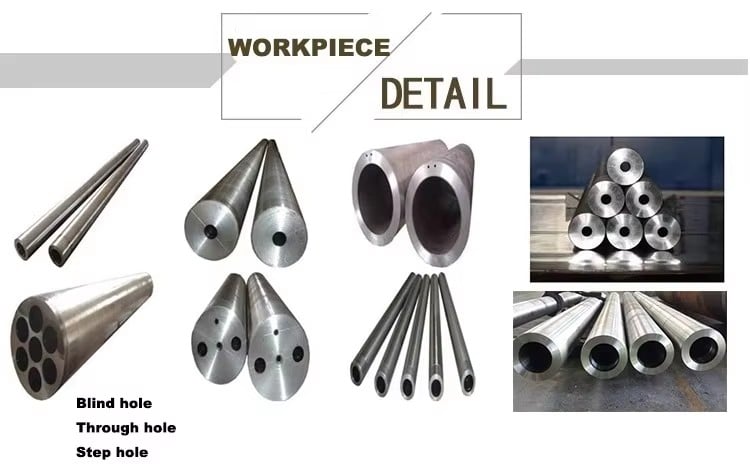

The machine can drill through-hole, blind hole and step hole.
The machine can be widely used in the line of automobile and motorcycle, mould and aeronautics.
1 |
Drill diameter |
Customized |
2 |
Max.drilling depth |
Customized |
3 |
Max.workpiece length |
Customized |
4 |
Max.workpiece diameter |
Customized |
5 |
Spindle speed |
50-1500r/min(stepless) |
6 |
Tool feeding speed |
10-500mm/min |
7 |
Max.workpiece clamp diameter |
100m |
8 |
Fast feeding speed |
2000mm/min |
9 |
Feed motor torque |
18Nm |
10 |
Drill bar box motor power |
11KW*2 frequency-variable |
11 |
Nominal pressure of cooling |
2.5Mpa |
12 |
Machine total power |
45KW |
13 |
Cooling liquid filtration precision |
20μm |
Main Parts Brand | ||
1 |
CNC system |
SIEMENS/FANUC |
2 |
Servo feeding motor(Z axis) |
Taiwan Zhongda |
3 |
Drill bar spindle servo motor |
Shanghai Meishike |
4 |
Feed ball screw |
Taiwan HIWIN |
5 |
Bearings |
Harbin,Wafangdian,Luoyang Bearing Co.Ltd |
6 |
Hydraulic components |
Jiangsu Haimen |
7 |
Hydraulic pump |
Cangzhou Dayu |
8 |
Automatic lubrication |
China famous brand |
9 |
Belts,wheels |
China famous brands |
10 |
Frequency converter |
Taiwan Zhongda |
11 |
Chain |
Langfang |
12 |
Low voltage electrical components |
SCHNEIDER |
Accuracy and Surface Roughness | |
1 |
After drilling,hole accuracy:IT10-11.Surface roughness Ra≤12.5 |
2 |
After rough boring,hole accuracy IT9-10.Surface roughness Ra≤6.3 |
3 |
After fine boring,hole accuracy IT7-8.Surface roughness Ra≤3.2 |
4 |
After rolling,hole accuracy IT7-8.Surface roughness Ra≤0.4 |
5 |
Hole linearity:≤0.15/1000mm |
Q: How about after-sales service?
A: 1. We can provide free training in our company. 2. If you need, our engineers are available to service machinery overseas.
Q: How about the warranty?
A: The complete machine has a one-year warranty and Life time maintenance.
Q: What should I do when I have some problems or questions?
A: Please don’t hesitate to contact us, we will reply you as soon as possible.
Q: How about the quality?
A: Before we pack each machine, we will test it first. If machine has problem in your place, our worker will take responsible for his mistake. And we will solve your problem.
Q: why choose you?
A: We are manufacturer and have been specialized in this area for over 20 years.Our deep hole processing machinery are exported to all over the world.
You can get perfect quality product & professional service from CHUANG YUAN with good price.
