- Type: Pipe Production Line
- Pipe Material: Carbon steel
- Power: 100000
- Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
- Place of Origin: Jiangsu, China
- Weight: 60000 kg
- Warranty: 1 Year
- Key Selling Points: Long Service Life
- Video outgoing-inspection: Provided
- Machinery Test Report: Provided
- Application: Pipe making
- Brand Name: ChuangYuan
- Dimension(L*W*H): 40*4m
- After-sales Service Provided: ERW carbon steel square pipe making machine tube mill
- Type: Pipe Mill
Key attributes
Type |
Pipe Production Line |
Pipe Material |
Carbon Steel |
Power(w) |
100000 |
Core Components |
PLC, Engine, Bearing, Gearbox, motor, Pressure vessel, Gear, Pump |
Place of Origin |
Jiangsu, China |
Weight |
60000 kg |
Warranty |
1 Year |
Key Selling Points |
Long Service Life |
Video outgoing-inspection |
Provided |
Machinery Test Report |
Provided |
Application |
pipe making |
Brand Name |
ChuangYuan |
Dimension(L*W*H) |
40*4m |
After-sales Service Provided |
ERW carbon steel square pipe making machine tube mill |
Type |
Pipe Mill |
color |
optional |
machine tool |
pipe making machine |
function |
metal processing |
width of steel strip |
78-240mm (±0.2mm) |
I.D. of steel coil |
450-550 |
O.D. of steel coil |
800-1200 |
length |
4-8m |
Milling speed |
2-8m/min |

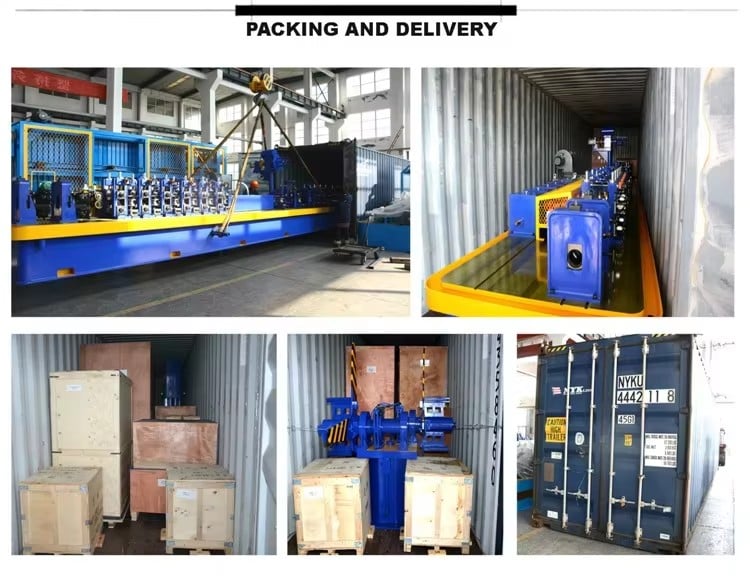

Packaging and delivery
| Selling Units: | Single item |
| Single package size: | 4000X300X300 cm |
| Single gross weight: | 60000.000 kg |
Product descriptions from the supplier

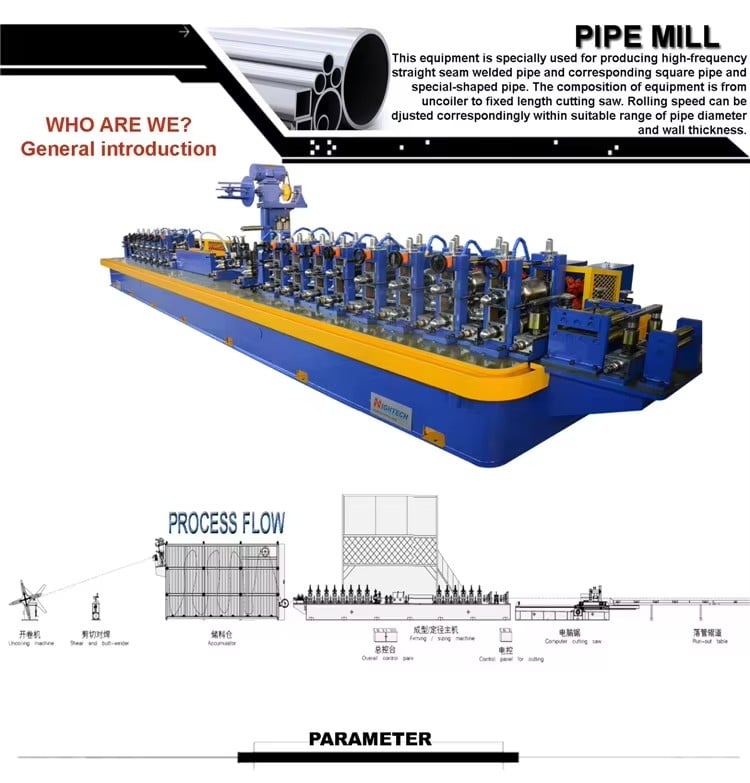

Overview
Model |
Diameter of welded tube (mm) |
Wall thickness of welded tube (mm) |
Speed of tube welding (m/min) |
Power of main motor (kw) |
High frequency power (kw) |
ZG16 |
8-25 |
0.25-1.0 |
30-100 |
30 |
60 |
ZG25 |
8-32 |
0.35-1.3 |
30-100 |
45 |
100 |
ZG32 |
13-50.8 |
0.5-2.0 |
30-90 |
110 |
150 |
ZG50 |
20-63.5 |
0.6-2.5 |
30-90 |
160 |
200 |
ZG60 |
25-63.5 |
0.8-3.0 |
20-80 |
185 |
250 |
ZG76 |
25-80 |
1.2-4.0 |
20-70 |
200 |
300 |
ZG90 |
32-90 |
1.5-4.5 |
20-60 |
110x2 |
400 |
ZG115 |
38-115 |
2.0-5.0 |
20-60 |
160x2 |
400 |
ZG165 |
80-165 |
2.0-6.0 |
15-50 |
200x2 |
500 |
ZG219 |
90-219 |
3.0-8.0 |
15-50 |
250x2 |
600 |
ZG273 |
185-273 |
4.0-10.0 |
15-40 |
250x1 185x2 |
800 |
ZG300 |
165-355 |
4.0-12.0 |
15-30 |
250x2 200x2 |
1200 |
 |
 |
 |
|

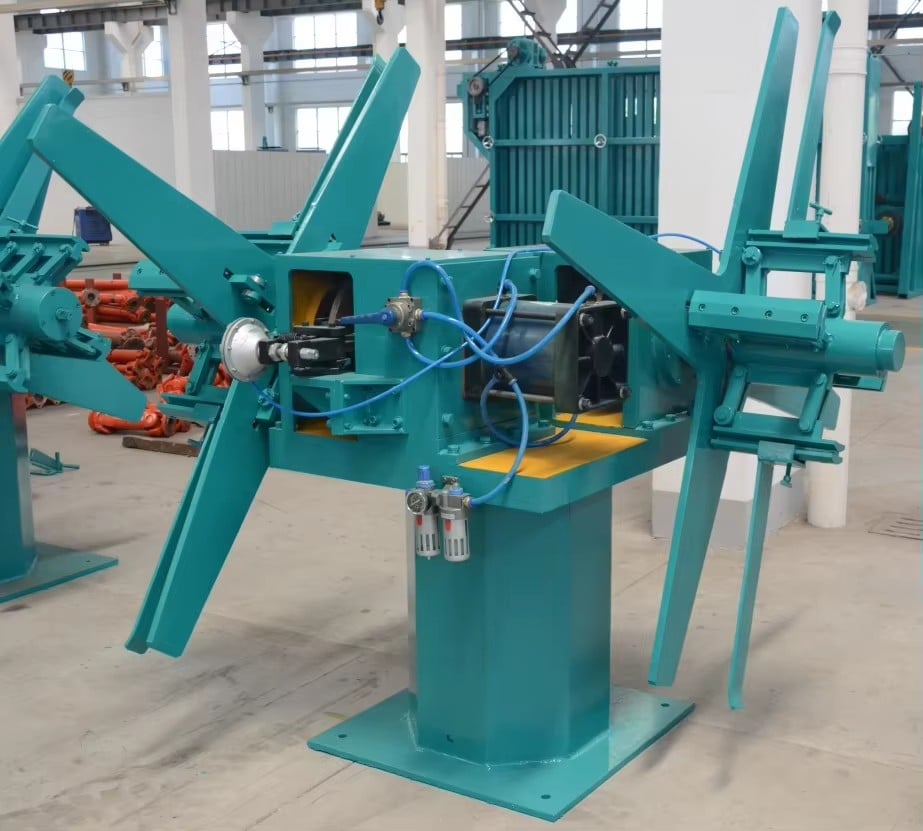

Uncoiler 360°rotary hydraulic-pressure expanding tight，which insure steel coil feeding alternatively and make steel strip go into accumulator freely |

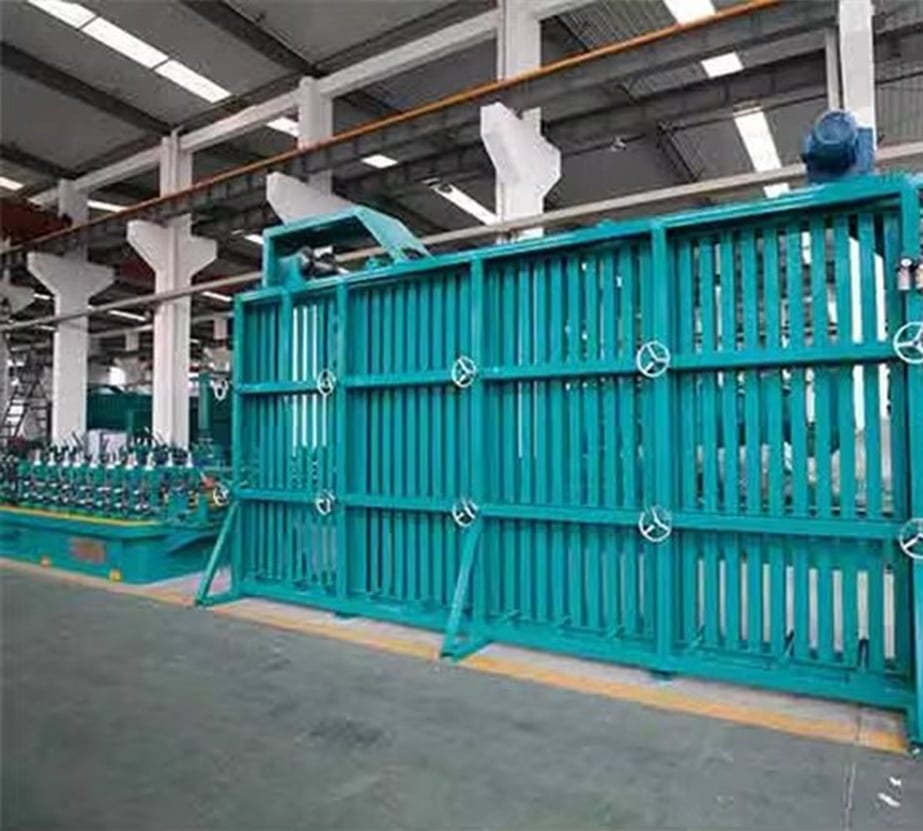

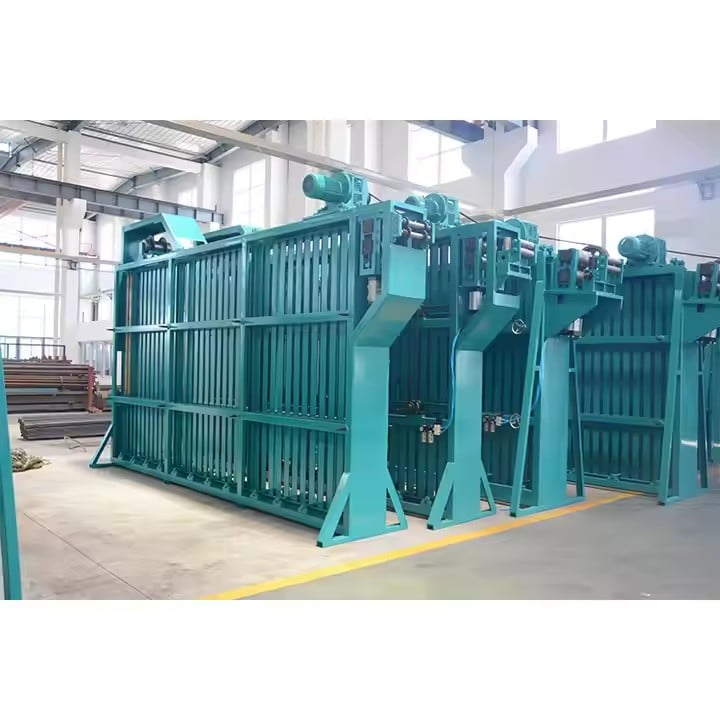

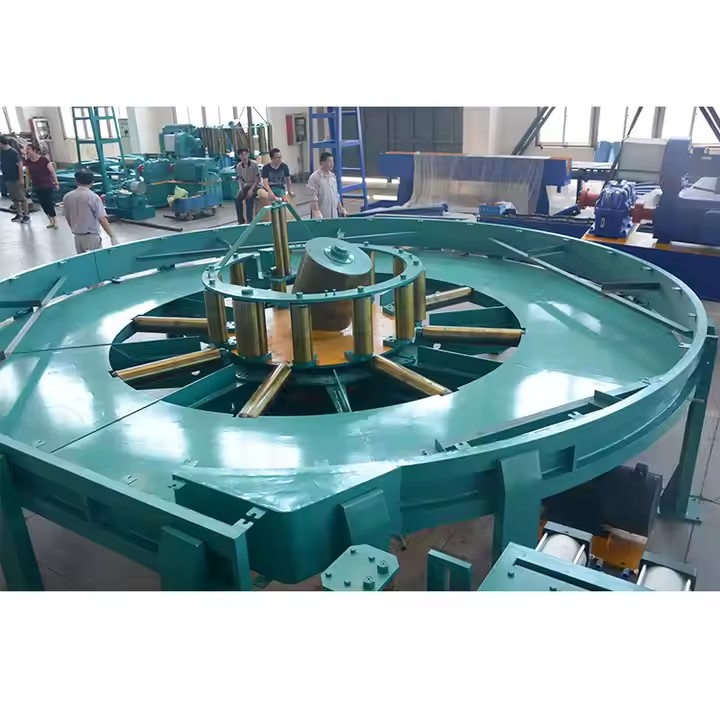

Accumulator Overview：it has two kinds of accumulator for optional.usually big line use horizontal type,and small line use vertical type. |

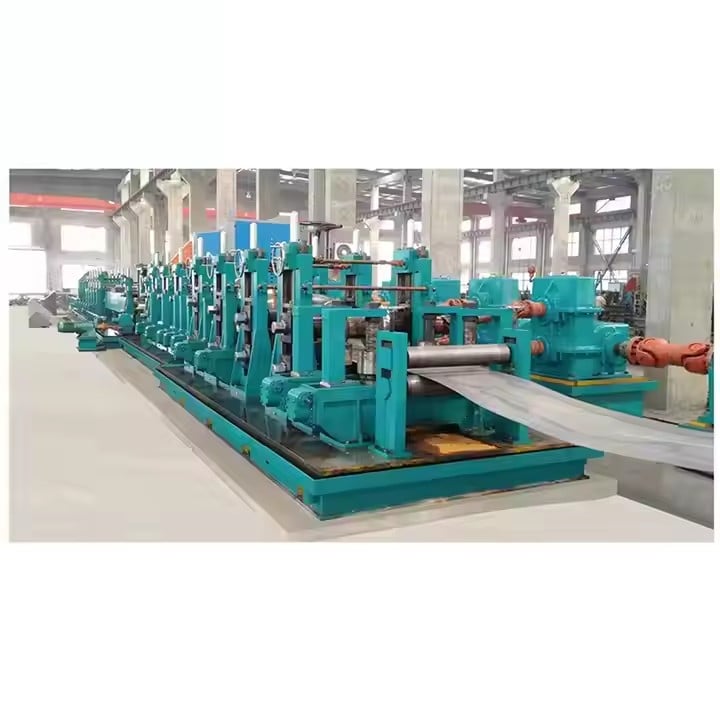

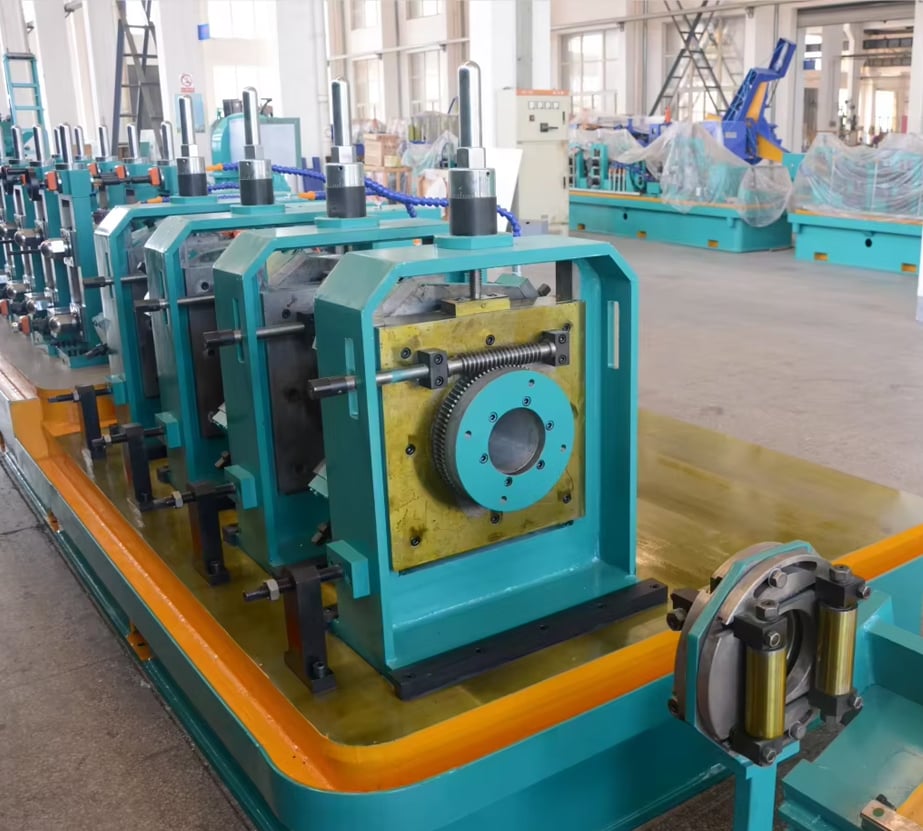

Forming part Mainly roughly mill-forming steel strip and controlling weld seam |
 |
 |
 |
|

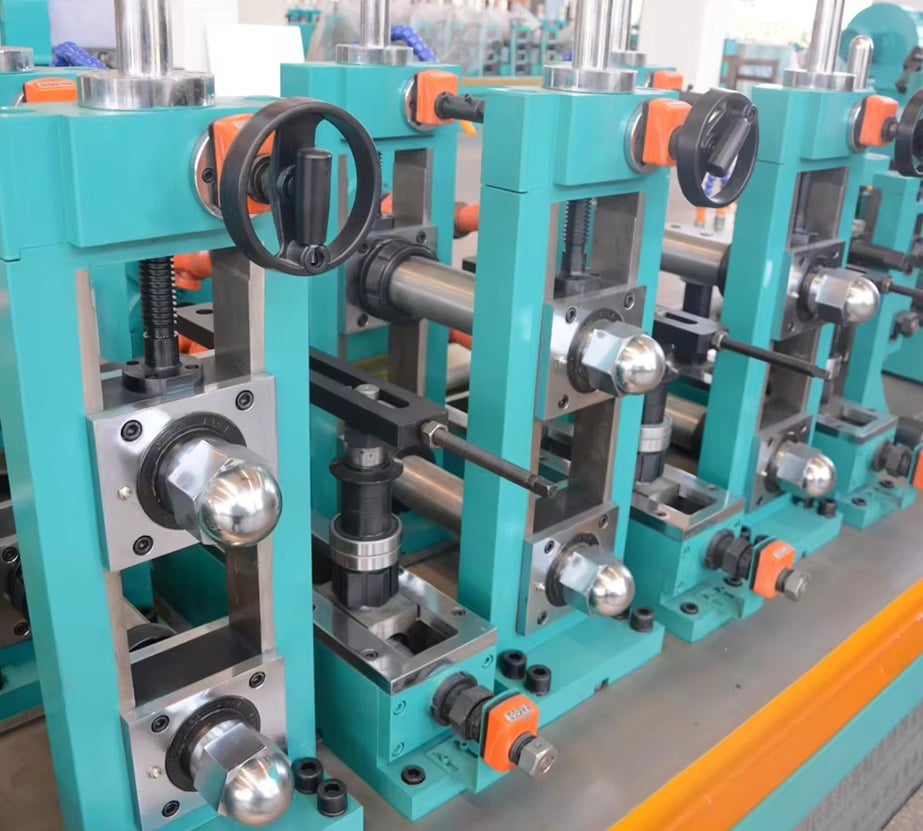

Sizing part Mainly fine shaping pipe after welding and controlling size accuracy |

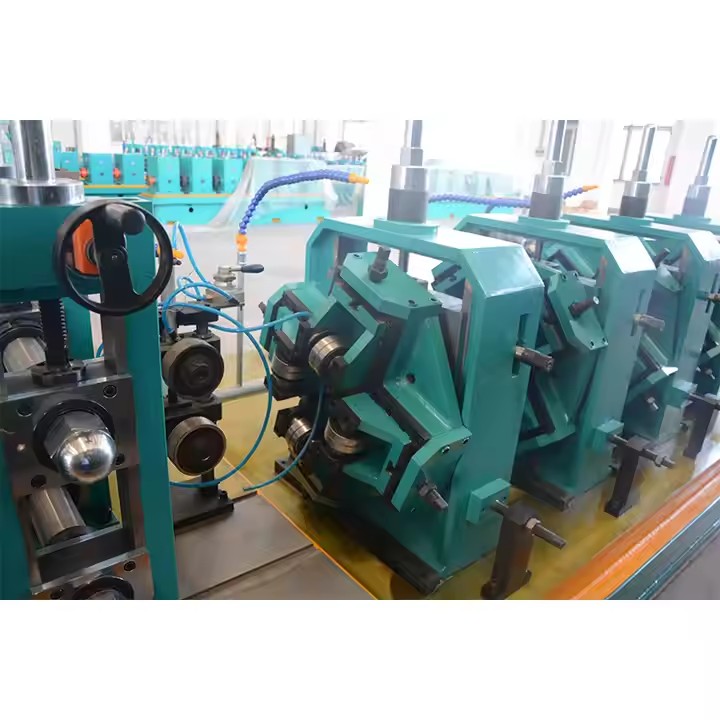

Turkey’s head mainly used for straightening of finished pipe roughly online |

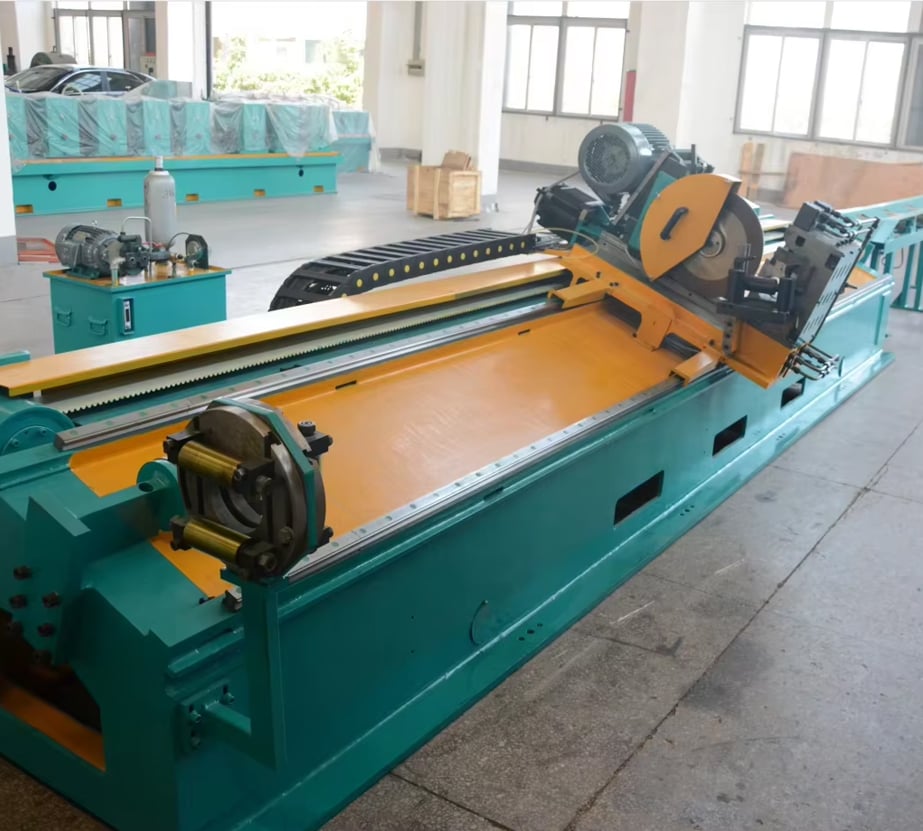

Cold saw cutting This numerical control cold cutting flying saw, with internationally advanced performance and all servo control, is suitable for online moving high-speed cutting of various pipes. |

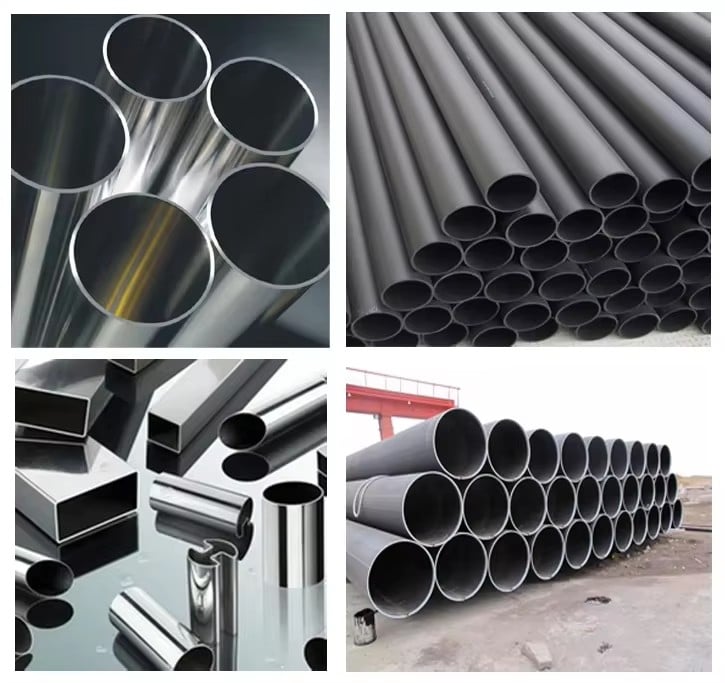

Application tubes
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Q:Are you manufacturer?
A: Yes, we are manufacturers of cut to length line,we have our own technical team, and about 80,000 sq.m workshop, welcome to visit us!
Q:What payment terms do you accept?
A: We are flexible on payment terms,we can also help you on financing,please contact us for details!
Q:What information will you need to make the proposal?
A: Coil weight,coil width,coil thickness,coil material, max. cutting length, cutting speed and your special requirements.
Q:What should I do to start a new business?
A: Please contact us immediately,we provide free pre-sales consultant service. Also we can help you to solve the worker training.
Q: Do you provide training and maintenance?
A: Yes. In order to your more efficiency for production, when the machine has arrived at the importer’ s port.
Our company will send engineers to installing the machine and responsible for training the worker of customer until they can operating the machine skillful.
During the warranty time, if the device can 't work normally, after receiving your notice, within 24 hours, we will send engineers to your factory for processing; If it is artificial damage,then need to charge a cost.
Each machine leaving the factory will be along with related English instructions including maintenance manual and operation manual.
Q:Why choose you?What is the difference between you and other Chinese supplier?
A: We have specialized in this area for over 20 years.Our cut to length line are exported to many countries in the world. You can get higher quality product & better professional service from Hitech with same price.
