- Machine type: Sinker EDM
- Max. drilling dia. (mm): 3
- Range of spindle speed(r.p.m): 20 - 120 r.p.m
- Cnc or not: CNC
- Voltage: 220V
- Power (kw): 2
- Weight (kg): 1300
- Warranty: 1 Year
- Core components: Bearing, Motor, PLC, Engine
- Place of origin: Jiangsu, China
- Brand name: Changyuan
- Dimension(l*w*h): 1700*1600*2100mm
- Key selling points: Competitive Price
- Machinery test report: Provided
- Video outgoing-inspection: Provided
Key attributes
Industry-specific attributes
| machine type | Sinker EDM |
| max. drilling dia. (mm) | 3 |
Other attributes
| range of spindle speed(r.p.m) | 20 - 120 r.p.m |
| cnc or not | CNC |
| voltage | 220V |
| power (kw) | 2 |
| weight (kg) | 1300 |
| warranty | 1 Year |
| core components | Bearing, Motor, PLC, Engine |
| place of origin | Jiangsu, China |
| brand name | Changyuan |
| dimension(l*w*h) | 1700*1600*2100mm |
| key selling points | Competitive Price |
| machinery test report | Provided |
| video outgoing-inspection | Provided |

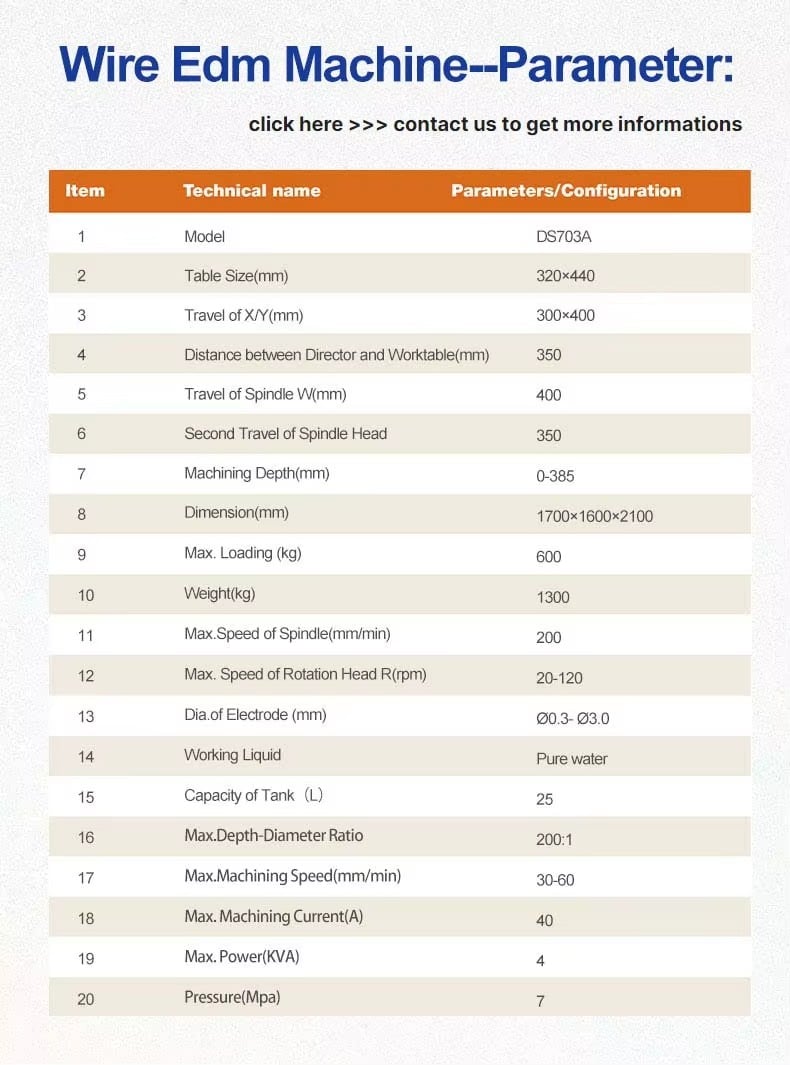

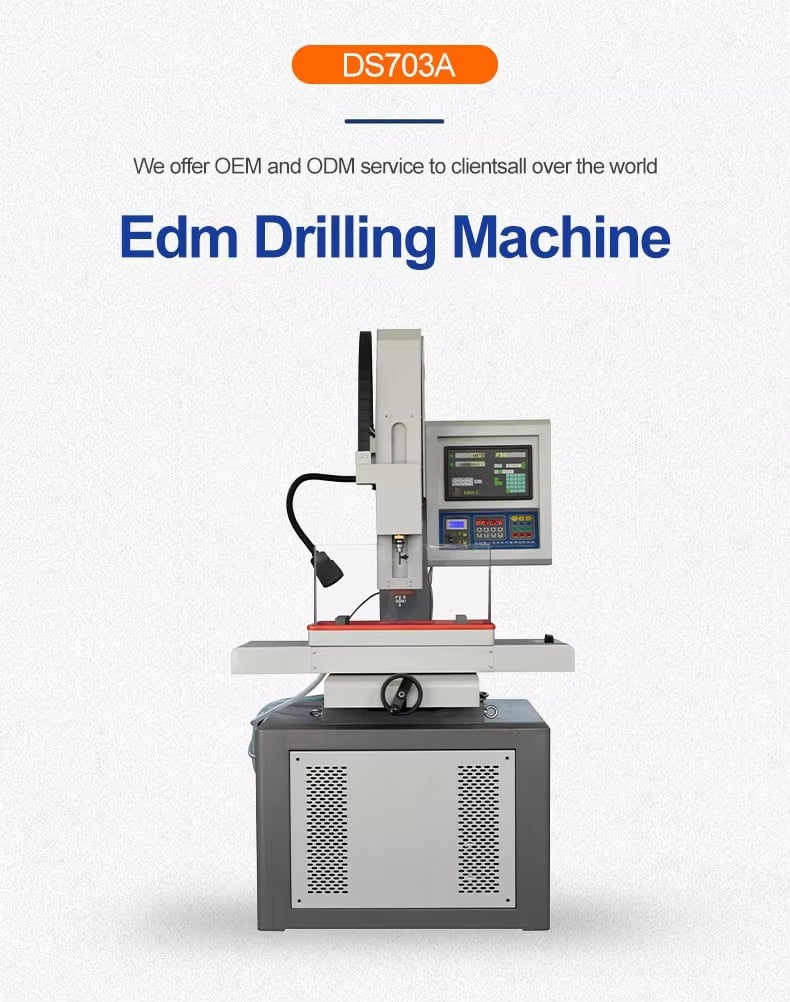

| Model | DS703A |
| Table Size(mm) | 320x440 |
| Travel of X/(mm) | 300x400 |
| Max. Power(KVA) | 4 |
| Travel of Spindle V(mm) | 400 |
| Second Travel of Spindle Head | 350 |
| Machining Depth(mm) | 0-385 |
| Max.Speed of Spindle(mm/min) | 200 |
| Dia.of Electrode (mm) | calibre0.3-3.0 |
| Pressure(Mpa) | 7 |
Packaging and delivery
| Selling Units: | Single item |
| Single package size: | 170X160X210 cm |
| Single gross weight: | 1300.000 kg |
|
Table Size(mm)
|
320×440
|
|
Travel of X/Y(mm)
|
300×400
|
|
Distance between Director and Worktable(mm)
|
350
|
|
Travel of Spindle W(mm)
|
400
|
Automatic Mini Metal Lathe New TCK36A CNC Lathe Machine for Metal Mini CNC Milling Machine Torno CNC Turning

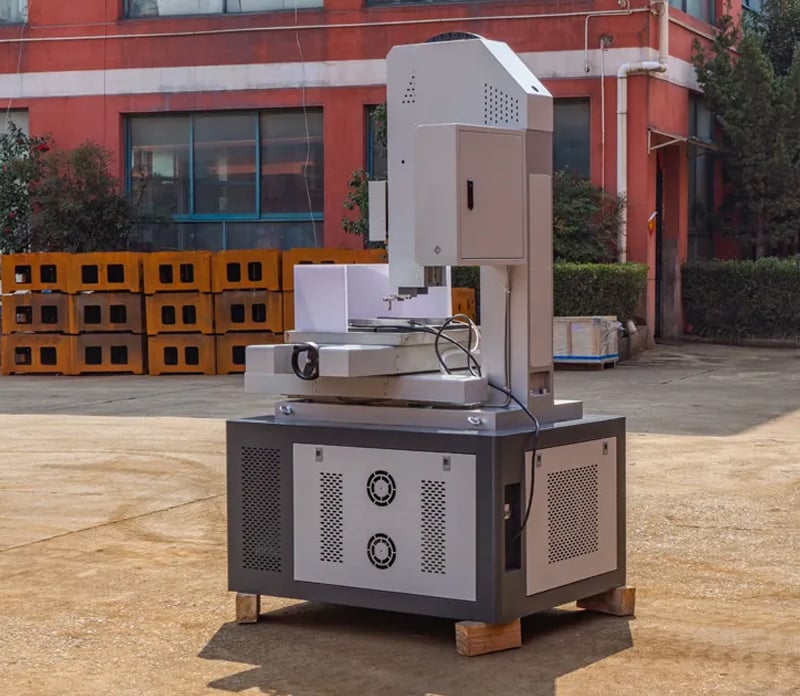

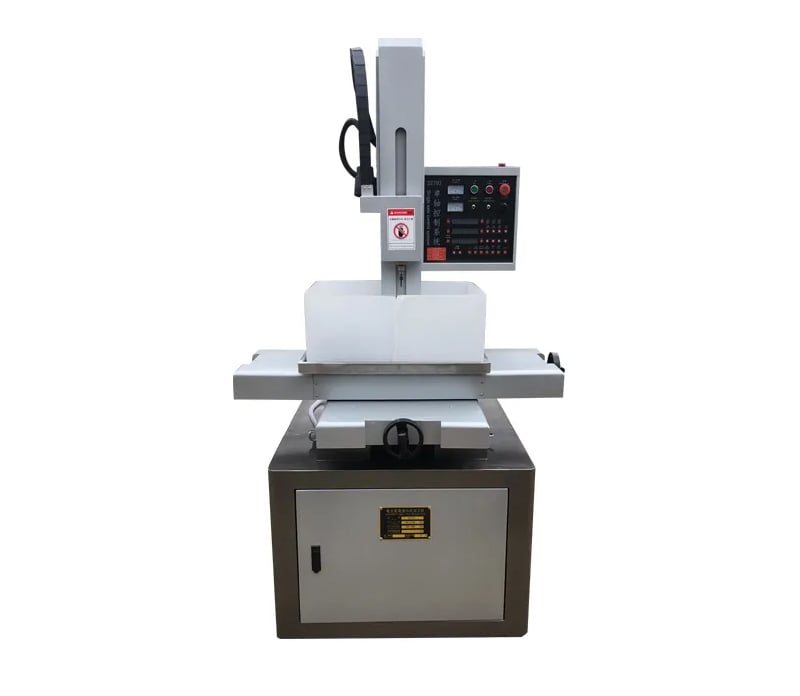

Factory Wholesale DS703A CNC EDM Small Hole Drilling Machine edm Super Drill machine

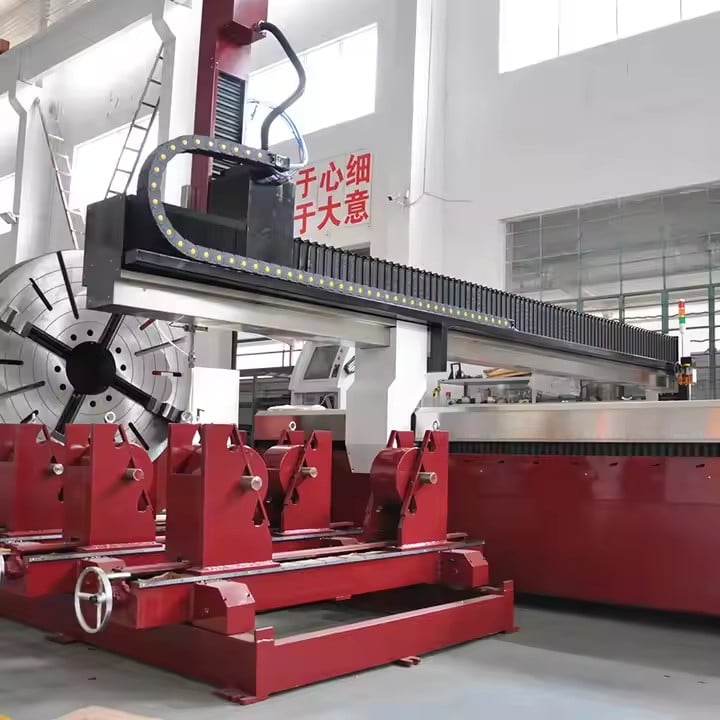

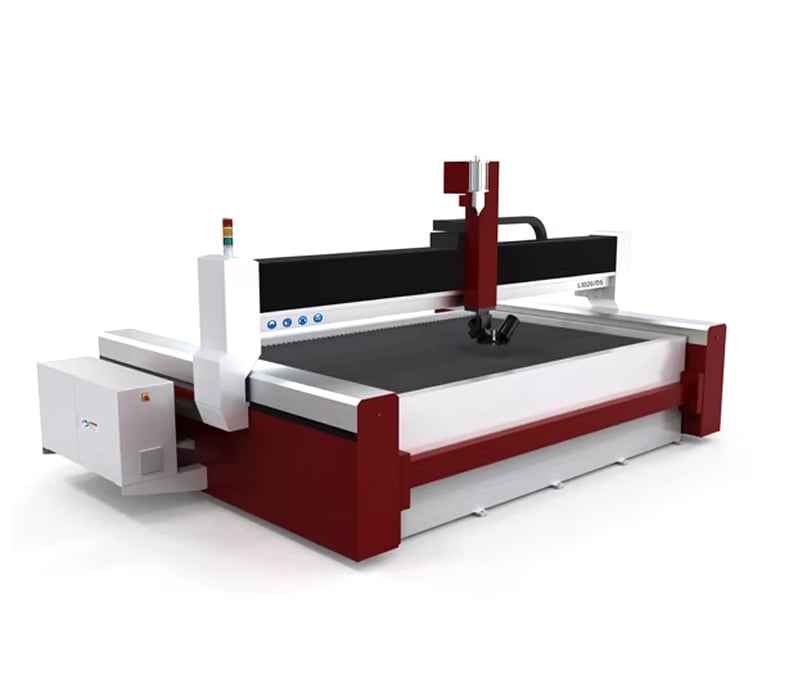

5 Axis Water Jet Cutter 3D Waterjet Cutting Machine With Flow Type Direct Drive Pump Water Jet Machine
