5 Axis 3d Waterjet Machine 1530 Cnc Water Jet Cutting Machine for Marble Granite Glass Cutting Water Jet Cutter

5 Axis 3d Waterjet Machine 1530 Cnc Water Jet Cutting Machine for Marble Granite Glass Cutting Water Jet Cutter

- Core components: PLC, motor, Gearbox, Pressure vessel, Gear, Pump
- Warranty: 1 Year
- Weight (kg): 3000
- Place of origin: Jiangsu, China
- Repeatability (x/y/z) (mm): ±0.025
- Table travel (x) (mm): 3000
- Table travel (y) (mm): 1500
- Table travel (z) (mm): 200
- Number of axes: 3
- Video outgoing-inspection: Provided

Introduction

Key attributes

Industry-specific attributes

Core components	PLC, motor, Gearbox, Pressure vessel, Gear, Pump	Voltage	220V/380V/415V
Warranty	1 Year	Repeatability (x/y/z) (mm)	±0.025
Key selling points	Long Service Life	Machinery test report	Provided
Video outgoing-inspection	Provided	Number of axes	3
*Dimension(lwh)*	according to machine model	Rated power	30KW/40HP;37KW/50HP
Weight (kg)	3000	Place of origin	Jiangsu, China
Table travel (x) (mm)	3000	Table travel (y) (mm)	1500
Table travel (z) (mm)	200	Cutting accuracy(mm)	±0.1
Brand name	ChuangYuan	Name	Water jet cutting table of water jet cutting machine cutter
Cutting materials	stone ,plastic ,Stainless steel , brass, aluminum, glass.etc	Cutting accuracy	+/-0.1mm
Max.flowrate	3.7 L/Min	Drive system	AC servo and screw ,guiderail
Size	custom-made	Structure	gantry or cantilever
Colour	white and red or custom-made	Working pressure	320-400mpa
Abrasive name	garnet

Packaging and delivery

Selling Units:	Single item
Single package size:	500X400X500 cm
Single gross weight:	4000.000 kg

Product descriptions from the supplier



Product Description

As an advanced cutting equipment, the water jet cutting machine has a wide range of applications in the industrial field.

A complete set of water jet cutting machines usually consists of five main parts: the first is the high-pressure system, which is the key to generating high-pressure water flow and provides strong power support for cutting; the second is the cutting platform, which bears the material to be cut and provides a stable foundation for the cutting operation; the third is the control system, just like the intelligent center of the equipment, accurately regulating various parameters of the entire cutting process; the fourth is the cooling system, which effectively reduces the temperature during the operation of the equipment to ensure the stability and safety of the equipment. The cooling system includes air-cooling system and water-cooling system, and it is necessary to reasonably choose the equipment with high or low cooling intensity according to different usage temperature environments to adapt to the specific working condition requirements; the fifth is the sand supply system, which plays an important role when abrasive water jet cutting is required to ensure the smooth supply of abrasives. The sand we use is generally 80-mesh garnet sand, which has good cutting performance and stability.

Specification

CNC Water Jet Cutting Machine Parameter(L=Gantry type)
Parameters		Unit	CY-L1010	CY-L2015	CY-L3015	CY-L3020	CY-L2060
Efficient Cutting Area		mm	1000×1000	2000×1500	3000×1500	3000×2000	2000×6000
Axis Travel	X	mm	1000	2000	3000	3000	2000
	Y	mm	1000	1500	1500	2000	6000
	Z	mm	150-180	150-180	150-180	150-180	150-180

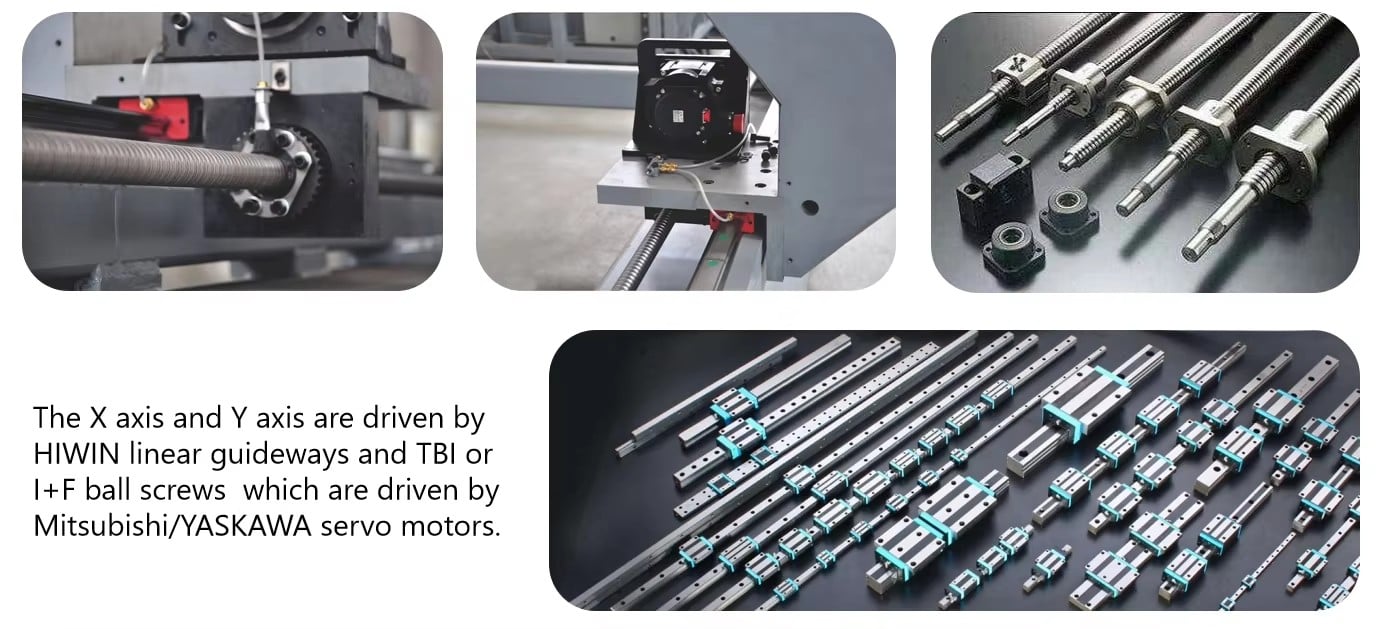

X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt MITSUBISHI or Yaskawa
Cutting Accuracy		mm	±0.1
Positioning Accuracy		mm	±0.025
X,Y Dry-run Speed		m/min	0-15 (if need 30m/min speed,we can do as request )
Cutting Speed		m/min	as to detail material and thickness

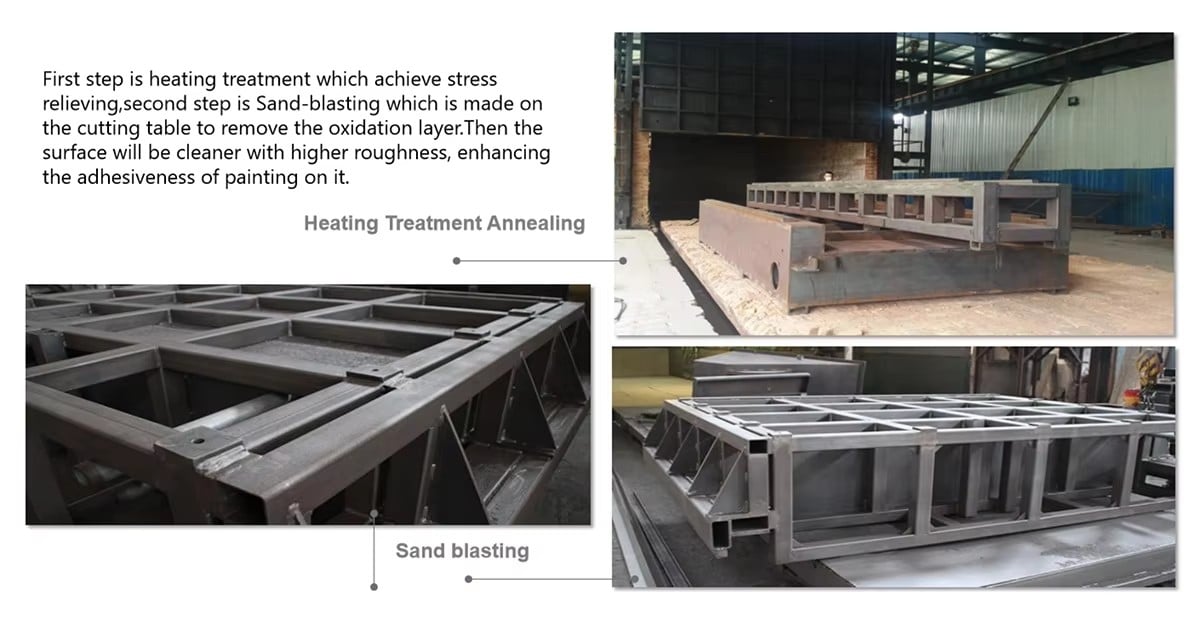

How is our CY waterjet cutting platform made?

H98215b161f604af3955f013de527d72d0.avif (1).jpg Hcfd9374a19b943e4b7be7143119d0dcdS.avif.jpg

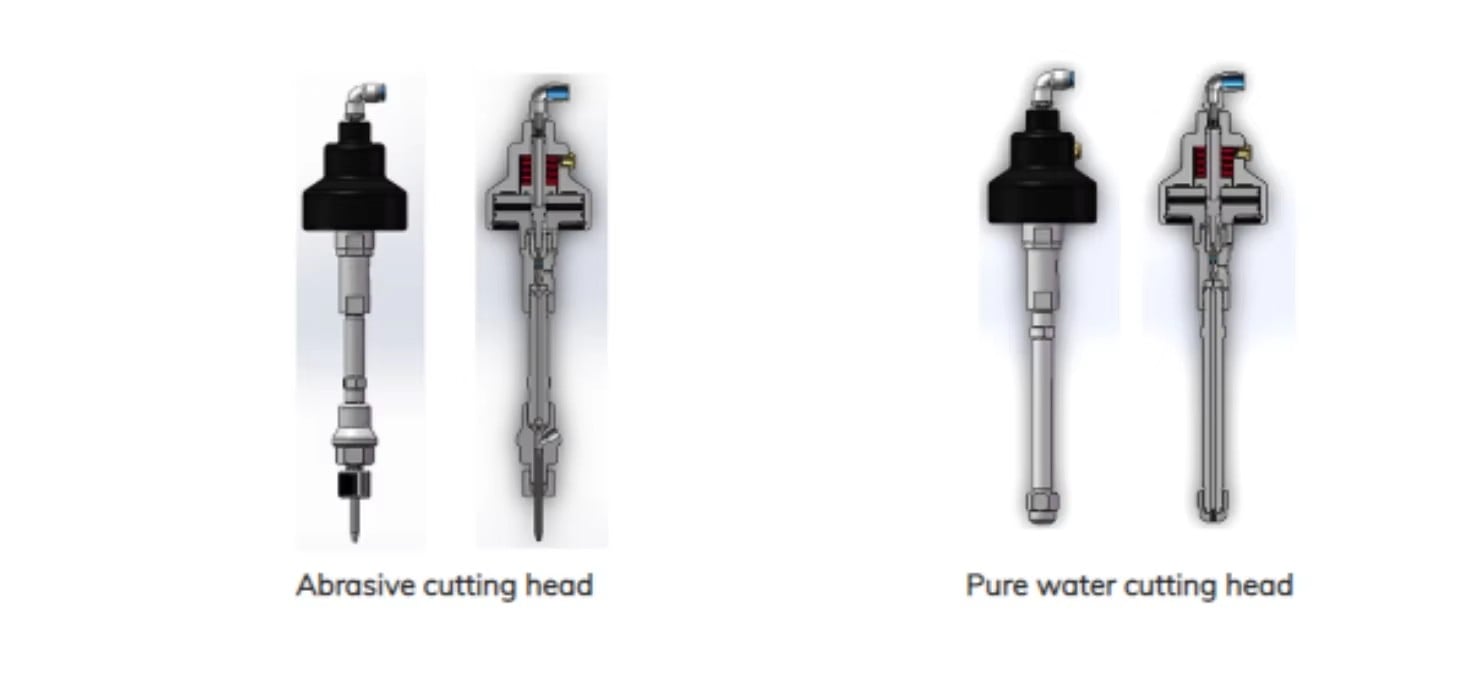

Waterjet cutting head

Ultra-high pressure water jet is mainly divided into abrasive cutting and only water cutting(Including pure water cutting).
Therefore, the cutting head is also divided into abrasive waterjet cutting head and pure waterjet cutting head.

* Abrasive waterjet cutting is mainly used for cutting metal (such as carbon steel, stainless steel, etc.), nonferrous metal
(such as copper, aluminum, titanium alloy, magnesium alloy, etc.), stone, glass, large thickness composite materials (such as carbon fiber, glass fiber) and so on.

* Only water cutting is mainly used for cutting rubber, foam, cloth, paper, rock wool, food （pure waterjet cutting）and so on.

What materials can a waterjet cut?

Alloys，Steels，Laminates，Composites，Plastics/Acrylics，Rubber，Gaskets，Fiberglass，Glass ...

Customizable Waterjet Cutting Systems

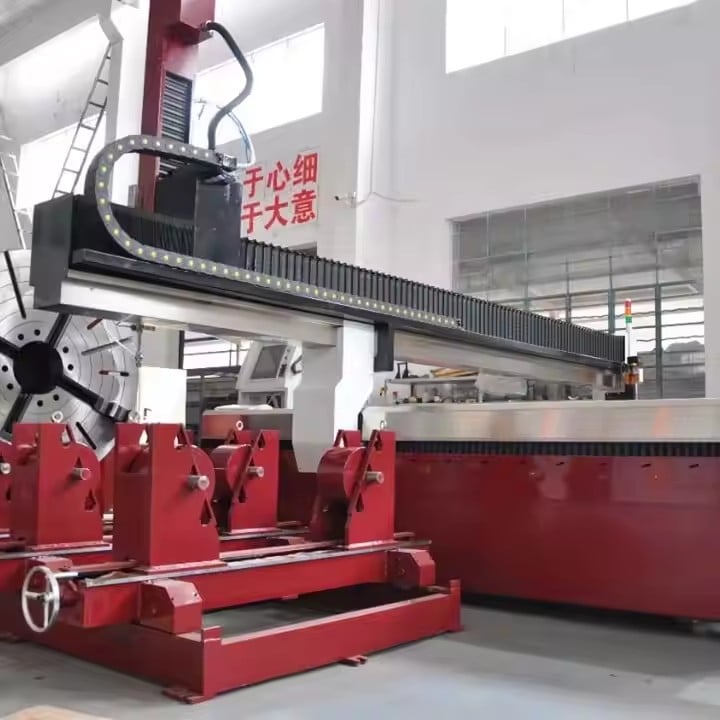

Customizable X, Y, and Z axesMachine tool with a z-axis of 1 meter

Customized model of tube plate integrated water cutting machine

Customization of water cutting production line

Company Profile

Taizhou Chuang Yuan Machine Tool Co., Ltd. is located in Hailing Industry Park Taizhou City, Jiangsu Province, China, with a number of research and development and manufacturing bases. Our company specializes in researching,manufacturing and selling precision machines.Taizhou Chuang Yuan Machine Tool Co., Ltd. has built long term and close cooperation relationships with many foreign friends, covering more than 20 countries, and we are looking forward to more cooperations with friends from all over the world, and hope our products could help more friends in their local industry and business market development. Our company established in 2003, has 96 employs, and sold about 200 sets about the machines all of the world. We always keep our enterprise mission---“Quality changes the world” in mind. We start our work from each trivial matter, and do our best to complete each detail well, and offer solid technical service and good service to our machine customers.Quality guarantee, high efficiency, valuing friendship, observing credibility and sincerity-oriented” is our enterprise principle,which all staff should abide by. Quality and honesty are the keys of the enterprise future.

FAQ

Q: What is the advantage of water jet cutting machine?
A :Cold processing, no heat deformation; Strong cutting ability, it can cut almost any material; pure water jet can cut soft materials, abrasive waterjet can cut hard materials, evenit can cut flammable and explosive objects; cutting accuracy is high, edge is neat. Waterjet also has the title of universal cutting machine.

Q: How to choose a standard cutting table?
A:You need to offer the size of the materials you want to process or the size of the cutting table.

Q:How to solve the incision bevel problem by 3 axis water cutting?
A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system. It can make a small angle compensation in the software.

Q:Is the equipment easy to operate?
A:Based on the good waterjet software, opertaor can learn it easily. and if customer order new machine, our technician will provide training for the machine’s running and maintenance.
